maestro wireless

-




WLg-DONGLE-OEM
Wireless serial to WiFi IEEE 802.11 a/b/g/h (2.4 / 5 GHz)
Ethernet full module for OEMs

Product Sheet

ACKSYS renews its serial to wireless solution offer by introducing the WLg-DONGLE, a compact wireless RS232 / TTL serial to WiFi Ethernet server, it replace the WL-DONGLE-OEM and offers the same foot print and the same connectors pin out as in previous version.

WLg-DONGLE relies on the same technology used in the "WLg-xxx" series and thus profit from proven technology, device is very compact and is specially designed to satisfy the needs of the system integrator market.

Product rely on the IEEE 802.11 a/b/g/h standards (2.4 GHz & 5 GHz), it features an full high speed serial port (250 Kbps) available on a male SUB D9 or on a 16-point HE10 connector for the TTL model.

The radio link is made safe by using most modern methods of protection: WEP 64/128 bits, WPA-PSK, WPA2-PSK and authentification IEEE 802.1x (RADIUS). The nominal range (open space) of the module is 300 m for a transmit power of +20 dBm and -92 dBm in reception (a/g modes) and -95 dBm (IEEE 802.11b mode).

Its size is extremely compact (L:89 x W:57 x H:19 mm) in order to be integrated in any equipment equipped with a serial port, consequently opening to equipment access to the wireless world.
It can be connected the a printed circuit board through a female HE10 connector or even through a flat cable.

It can be powered from the DC power source (+3.3VDC or +5VDC), consumption doesn't exceed 3.5W.

This module supports the following modes: TCP Client / Server, TELNET RFC2217, COM port redirection, TELNET server, raw, point to point (virtual cable) and the serial MODBUS to MODBUS/TCP gateway.

Easy configuration and administration with your web browser, TELNET, SNMP and from the ACKSYS administration software NDM.


Characteristics summary

    1 RS232 serial port (SUB D9) or TTL (HE10), up to 250 Kbps

    54/108 Mbps wireless link compliant to the IEEE 802.11 a/b/g/h &
        SUPER AG standards, OFDM, DSSS, 2.4 / 5 GHz, 2 HIROSE UFL connector for
        external antenna / cable

    Rapid roaming (less than 50 mS in single channel mode)

    300 m nominal range (line of sight), 60 m in other cases (with built-in antenna),
        up to 5 Km with a 20 dBi antenna

    Built-in ATHEROS's chip set: AR5414 (AR5006SX)

    +20 dBm transmit power, -92 dBm receive level (a/g modes) and -95 dBm
        receive level (b mode) with transmitter power output control (TPC) +20 dBm
        transmit power, -92 dBm receive level (a/g modes) and -95 dBm

    64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS)

    Configuration from standard internet web browser (built-in web server),
        SNMP agent, NDM administration software, TELNET from the serial port

    ACKSYS logo shown is the web server (banner area, top page) can be replaced with
        the OEM's company logo

    LEDs signalling for serial TxD / RxD and WLAN radio activity

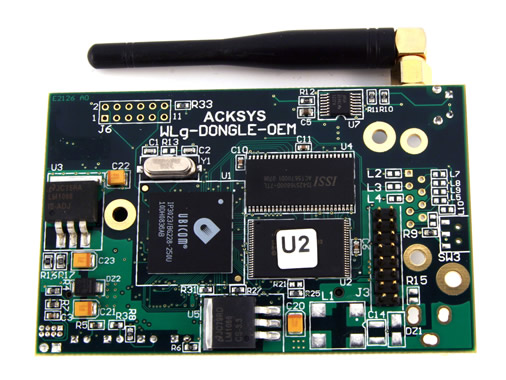

    Compact printed circuit (L:89 x W:57 x H:19 mm)

    +3.3VDC or +5VDC power source, 3.5W typical power consumption

    Wide operating temperature range: -20C to +70C, storage: -65 to +100C,
        humidity: 5% to 95% (non-condensing)

    *More information about serial MODBUS performances on radio links ...

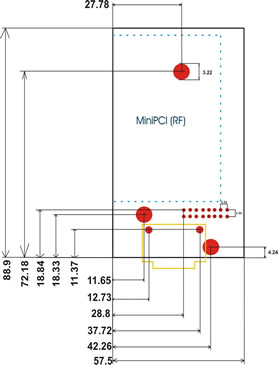

Mechanical characteristics and connectors Pin Out


Dimensions in mm


HE10 male connector (TTL level signals)

Pin Dir. Dir.
1 O RS485 self line turn around (1 if active)
2 P +3.3VDC (3W) (1)
3 I RI (0 if active)
4 O WLAN actity 3V3 LED (0 if active)
5 O RTS (0 if active)
6 O TxD (0 if active)
7 I RxD (0 if active)
8 I DCD (0 if active)
9 O DSR (0 if active)
10 O Serial activity 3V3 LED(1 if active)
11 O Administration 3V3 LED(1 if active)
12 O DTR (0 if active)
13 I CTS (0 if active)
14 I 0 for serial port administration, 1 for running mode
15 P +5VDC (3W) (1)
16 P GND

SUB D9 male connector (RS232 DTE level signal)

Pin Dir. Dir.
1 I DCD (Data Darrier Detect)
2 I RxD (Receive Data
3 O TxD (Transmit Data)
4 O DTR (Data Terminal Ready)
5 P GND (Ground)
6 I DSR (Data Set Ready)
7 O RTS (Request To Send)
8 I CTS (Clear To Send)
9 I RI (Ring Indicator)

Note (1):
Only one of the two power pins +3.3VDC (pin 2) or +5VDC (pin 15) should be used simultaneously to power the WLg-DONGLE-OEM. Powering from the +3.3VC power pin apply power directly to IC as the +5VDC go through a power regulator.

Remote COM port mode

Works with Windows 9x/me/NT/2K/XP, Linux and requires a COM port redirector driver software on the PC.

This mode is supported by the WLg-DONGLE-OEM when running the "ServerCom" firmware and when configured in the TELNET RFC 2217 mode (TELNET RFC 2217 is a standard).

This mode makes it possible to run any Windows COM applications without any adaptation (Hyperterminal for example), basically designed for a local COM port, the Windows communication API is fully supported. COM port configuration is carried out by the application itself and not necessarily by the administration module.

Other redirector softwares relying on the RFC 2217 standard exist for other operating systems.

TCP socket server mode

This mode works with any operating system supporting TCP/IP.
It is supported by the WLg-DONGLE-OEM when running the "ServerCom" firmware and when configured in the RAW mode.

The WLg-DONGLE-OEM is able to answer to TCP connection request on a configurable TCP port (it is thus a server).

The application which uses the WLg-DONGLE-OEM relies on the SOCKET API and not on the COM API.
COM port configuration (speed, characters, flow control) is programmed in the WLg-DONGLE-OEM using the administration module.

TCP socket client mode

This mode works with any operating system supporting TCP/IP.
It is supported by the WLg-DONGLE-OEM when running the "TCP Client" firmware.

The WLg-DONGLE-OEM is able to answer a TCP connection request on a TCP port to a server, the IP address of the server is programmed using the administration module.
Connection origin can be established from WLg-DONGLE-OEM power ON of from the rising edge of the DSR signal.

The application which uses the WLg-DONGLE-OEM relies on the SOCKET API and not on the COM API.
COM port configuration (speed, characters, flow control) is programmed in the WLg-DONGLE-OEM using the administration module.

TELNET mode

This mode works with any operating system supporting TCP/IP and which has a TELNET client software, two cases:

Configured TCP port TCP of the Socket TCP Server mode

This mode is supported by the WLg-DONGLE-OEM when running the "ServerCom" firmware and when configured in the TELNET mode. It doesn't require any application development on the PC, TELNET is the network application!

TCP port #23

This mode is supported by all the WLg-DONGLE-OEM's firmwares.
When the WLg-DONGLE-OEM receives a port 23 connection request, it switches to the administration mode and can thus be configured (speed, mode ...).

AD-HOC mode (point-to-point connection: virtual cable)

This mode enables to provide a full-duplex serial exchange between two serial equipements through the WLg-DONGLE-OEM and without using any access point.

However, the point-to-point connection thus carried out rely on IP and no more on the WiFi network substructure, the communication is carried out directly by radio between two WLg-DONGLE-OEM equipments like standard radio modems.

MODBUS/TCP data gateway mode

This mode is supported by the WLg-DONGLE-OEM when running the "MODBUS/TCP" firmware.

In conformity with the MODBUS/TCP Client / Server specifications, this mode makes it possible to connect any serial MODBUS equipments (MODBUS/ASCII & MODBUS/RTU) to the wireless Ethernet TCP/IP network.

In this mode, the WLg-DONGLE-OEM settles like a radio bridge between the wireless Ethernet network and the serial MODBUS equipments which dramatically simplifies the extension from traditional MODBUS installation to a MODBUS/TCP based installation on the wireless Ethernet network.
The WLg-DONGLE-OEM device can work as a slave or master device on both sides (Wireless Ethernet or Serial).

This mode also makes it possible to connect between them and in a transparent way several traditional serial MODBUS equipments through the wireless Ethernet network.

WLg-DONGLE-OEM with MODBUS/TCP allows moreover integration within the same network of serial MODBUS/ASCII & MODBUS/RTU based equipments and MODBUS/TCP equipments.

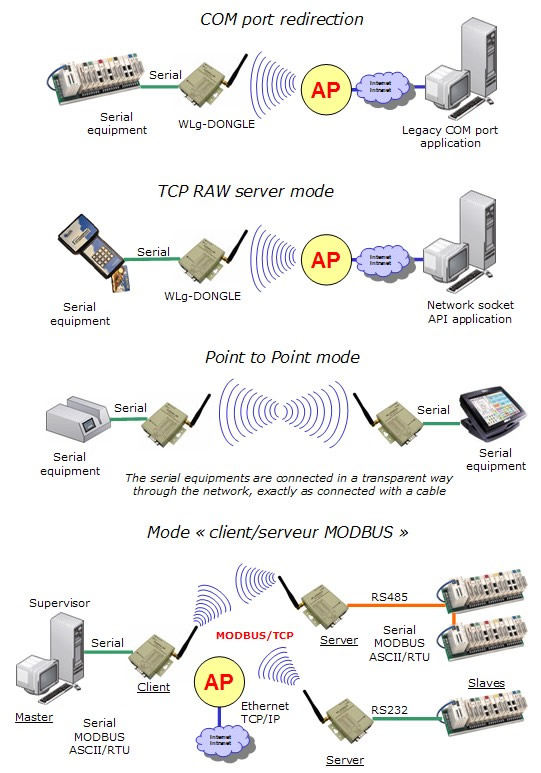

Some illustrations
