maestro wireless

-




WLg-xROAD/S
Wireless RS232 / RS422 / RS485
serial device server for automotive applications

Product Sheet

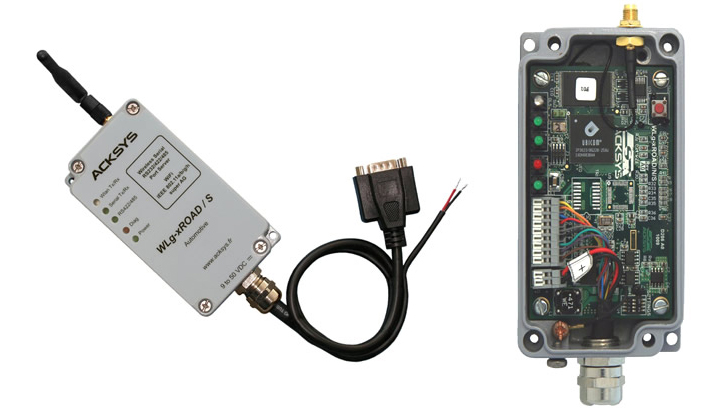

WLg-xROAD/S is a rugged equipment designed for applications in road and rail transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards … it can be mounted in trucks, city buses, forklifts, trailers, tractors or cranes, for material handling, real-time information transmission, and inventory management.

It fulfils the most severe requirements in terms of operating environment: from -25°C to +70°C, shockproof and vibration proof according to MIL-STD-810F standard, protection against dust and water projections (IP 65).

The product is UTAC E2 certified (CE standard for electronic equipments installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipments.

WLg-xROAD/S relies on the same technology used in the "WLg-xxx" series and thus profit from proven technology, device is very compact and is specially designed to satisfy the needs of the system integrator market.

Product rely on the IEEE 802.11 a/b/g/h standards (2.4 GHz & 5 GHz), it features an full high speed serial port (250 Kbps).

The radio link is made safe by using most modern methods of protection: WEP 64/128 bits, WPA-PSK, WPA2-PSK and authentification IEEE 802.1x (RADIUS).
The nominal range (open space) of the module is 300 m for a transmit power of +20 dBm and -92 dBm in reception (a/g modes) and -95 dBm (IEEE 802.11b mode).

This module supports the following modes: TCP Client / Server, TELNET RFC2217, COM port redirection, TELNET server, raw, point to point (virtual cable) and the serial MODBUS to MODBUS/TCP gateway.

Easy configuration and administration with your web browser, TELNET, SNMP and from the ACKSYS administration software NDM.


Characteristics summary

    1 RS232 / RS422 / 485 serial port (SUB D9), up to 250 Kbps

    Support for TCP Client/Server, DHCP Client, TELNET RFC2217 extension,
        Telnet Server, COM port re-director (VIP), multipoint or point to point virtual link over
        UDP modes and MODBUS/TCP Client/Server, MODBUS/RTU & MODBUS/ASCII
        protocols, direct communication (ad hoc) or from access point

    54/108 Mbps wireless link compliant to the IEEE 802.11 a/b/g/h
        & SUPER AG standards, OFDM, DSSS, 2.4 / 5 GHz

    64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS)

    One 2 dBi omnidirectional 2.4 / 5 GHz antenna, RP-SMA connector

    Rapid roaming (less than 50 mS in single channel mode)

    300 m nominal range (line of sight), 60 m in other cases
        {with built-in antenna), up to 5 Km with a 20 dBi antenna

    Built-in ATHEROS's chip set: AR5414 (AR5006SX)

    +20 dBm transmit power, -92 dBm receive level (a/g modes) and -95 dBm
        receive level (b mode) with transmitter power output control (TPC)

    Configuration from standard internet web browser (built-in web server),
        SNMP agent, NDM administration software, TELNET from the serial link

    LEDs signalling for serial TxD / RxD, WLAN radio activity and power

    Connectors are available inside the enclosure; cable is available outside
        through a stuffing box. A 9-point clamp cage terminal is dedicated to serial signals,
        2 additional points are used for the power supply cable, antenna is connected
        to a RP-SMA connector

    Robust aluminum case (L:115 x W:64 x H:35 mm) shockproof and vibration proof,
        330 g weight with the 40 cm serial cable

    +9VDC to +50VDC power source, 3.5W typical power consumption

    MIL-STD-810F methods 514.5 & 516.5 (shocks & vibrations),
        IP65 EN 301489-17 & EN 61000-6-2 (EMC), UTAC E2

    Operating temperature range: -25°C to +70°C, storage: -40 to +80°C,
        humidity: 0% to 99% (non-condensing)

    *More information about serial MODBUS performances on radio links ...

Remote COM port mode

Works with Windows 9x/me/NT/2K/XP, Linux and requires a COM port redirector driver software on the PC (VIP).

This mode is supported by the WLg-xROAD/S when running the "ServerCom" firmware and when configured in the TELNET RFC 2217 mode (TELNET RFC 2217 is a standard).

This mode makes it possible to run any Windows COM applications without any adaptation (Hyperterminal for example), basically designed for a local COM port, the Windows communication API is fully supported. COM port configuration is carried out by the application itself and not necessarily by the administration module.

Other redirector softwares relying on the RFC 2217 standard exist for other operating systems.

TCP socket server mode

This mode works with any operating system supporting TCP/IP.
It is supported by the WLg-xROAD/S when running the "ServerCom" firmware and when configured in the RAW mode.

The WLg-xROAD/S is able to answer to TCP connection request on a configurable TCP port (it is thus a server).

The application which uses the WLg-xROAD/S relies on the SOCKET API and not on the COM API.
COM port configuration (speed, characters, flow control) is programmed in the WLg-xROAD/S using the administration module.

TCP socket client mode

This mode works with any operating system supporting TCP/IP.
It is supported by the WLg-xROAD/S when running the "TCP Client" firmware.

The WLg-xROAD/S is able to answer a TCP connection request on a TCP port to a server, the IP address of the server is programmed using the administration module.
Connection origin can be established from WLg-xROAD/S power ON of from the rising edge of the DSR signal.

The application which uses the WLg-xROAD/S relies on the SOCKET API and not on the COM API.
COM port configuration (speed, characters, flow control) is programmed in the WLg-xROAD/S using the administration module.

TELNET mode

This mode works with any operating system supporting TCP/IP and which has a TELNET client software, two cases:

Configured TCP port TCP of the Socket TCP Server mode

This mode is supported by the WLg-xROAD/S when running the "ServerCom" firmware and when configured in the TELNET mode.
It doesn't require any application development on the PC, TELNET is the network application !

TCP port #23

TThis mode is supported by all the WLg-xROAD/S's firmwares.
When the WLg-xROAD/S receives a port 23 connection request, it switches to the administration mode and can thus be configured (speed, mode ...).

AD-HOC mode (point-to-point connection: virtual cable)

This mode enables to provide a full-duplex serial exchange between two serial equipements through the WLg-xROAD/S and without using any access point.

However, the point-to-point connection thus carried out rely on IP and no more on the WiFi network substructure, the communication is carried out directly by radio between two WLg-xROAD/S equipments like standard radio modems.

MODBUS/TCP data gateway mode

TThis mode is supported by the WLg-xROAD/S when running the "MODBUS/TCP" firmware.

In conformity with the MODBUS/TCP Client / Server specifications, this mode makes it possible to connect any serial MODBUS equipments (MODBUS/ASCII & MODBUS/RTU) to the wireless Ethernet TCP/IP network.

In this mode, the WLg-xROAD/S settles like a radio bridge between the wireless Ethernet network and the serial MODBUS equipments which dramatically simplifies the extension from traditional MODBUS installation to a MODBUS/TCP based installation on the wireless Ethernet network.
The WLg-xROAD/S device can work as a slave or master device on both sides (Wireless Ethernet or Serial).

This mode also makes it possible to connect between them and in a transparent way several traditional serial MODBUS equipments through the wireless Ethernet network.

WLg-xROAD/S with MODBUS/TCP allows moreover integration within the same network of serial MODBUS/ASCII & MODBUS/RTU based equipments and MODBUS/TCP equipments.

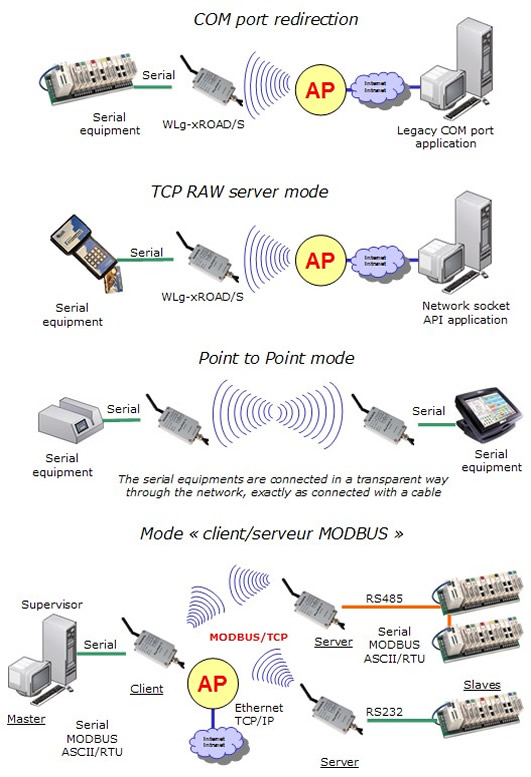

Some illustrations
