HyperLan-Pack
High speed wireless Ethernet backhaul

Product Sheet


HyperLan-Pack is a solution to establish a high speed Ethernet wireless link between buildings, factories, CCTV cameras, offshore platforms and temporary installations ... to connect Ethernet networks or Ethernet devices between each other.

HyperLan-Pack is available in two versions: long range (up to 5 Km) and medium distance (up to 1.5 Km) at 40 Mbps. Range increase significantly (up to 50 Km) if data rate is reduced to 10 Mbps.

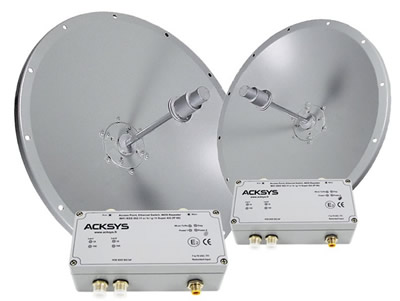

The kit is built around two WiFi units and two parabolic antennas, installation is very easy as described below:

    Antenna height calculation depending on distance and land topography

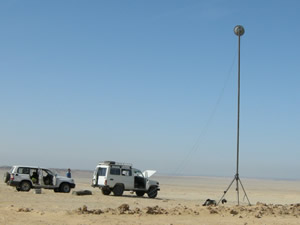

    Antenna mounting on masts
    Antenna tilt calculation using ACKSYS software and a GPS
    Antenna vertical alignment according to calculated tilts using a clinometer
    Antenna horizontal alignment using a compass
    Ethernet cable connexion on each unit
    Radio quality and sustained data rate checking

Installation is now complete, your wireless Ethernet link is established and your network connection is ready to use.



HyperLan-Pack relies on the WiFi 5.3 GHz standard (IEEE 802.11a) which is not widely used by WiFi equipments. This offers a good level of protection against perturbations generated by existing WiFi networks; moreover, the RF radiated beam is narrow (few degrees) so it's almost undetectable.

The radio link between the two units of the Ethernet Air-Pack is secured by the WPA2-PSK authentication and encryption method.

Each unit features a 10/100 Base TX auto-sensing, auto MDI/MDIX cross-over RJ45 network interface, maxium TCP data throughput is 40 Mbps.

HyperLan-Pack is powered from the Ethernet cable (IEEE 802.3af), it can also be powered from a DC source (+9VDC to +75VDC) for a 7W typical consumption.

Characteristics summary of each unit of the kit

    10/100 auto-sensing base TX Ethernet port, waterproof M12 8-point Ethernet
       connector, auto MDI/MDIX cross-over, 25 m RJ45 cable
    Up to 40 Mbps TCP data rate

    5.3 GHz wireless Ethernet link (IEEE 802.11a)

    Narrow beam (6°) parabolic directional antenna (23 or 28 dBi depending to models),
       N-type connector

    Built-in lightning surge protector

    Pre-configured WPA2-PSK, hidden SSID

    Administration: SNMP, ACKSYS NDM

    LEDs signalling for LAN, WLAN network activity and 10/100 mode

    IP 66 aluminum enclosure (L:80 x l:175 x h:57 mm)

    Directional antenna diameter: 44 cm (23 dBi), 60 cm (28 dBi)

    Mast mounting: diameter from 38 to 76 mm

    Wind loading data: 160 Km/h (200 Km/h with radome), loading: 50 kg (80 Kg with
       radome)

    Power from the Ethernet cable POE IEEE 802.3af or from a DC source (+9VDC à
       +75VDC), 7W typical consumption

    Operating temperature: -25°C to +70°C (HR 0-99%), storage: -40°C à +80°C

Throughput characteristics versus communication range

HyperLan-Pack/L Ethernet throughput (TCP) Range
10 Mbps 50 Km
20 Mbps 20 Km
40 Mbps 5 Km
HyperLan-Pack/M 10 Mbps 15 Km
20 Mbps 6 Km
40 Mbps 1, 5 Km

Given characteristics are theoritical and can change depending on local RF regulations concerning the maximum allowed output power (EIRP) and on environment conditions.

Consult us for details.

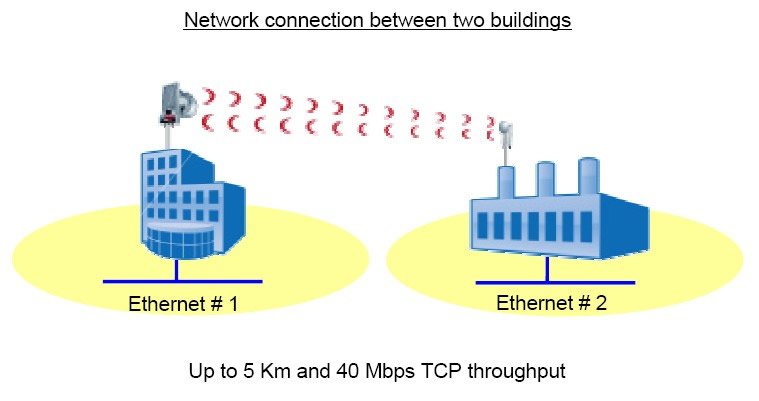

Application Example
