WLg-SWITCH
3-in-1 combo: Rugged 8-port Ethernet Switch, POE injector, WiFi AP, BRIDGE, REPEATER (IEEE 802.11 a/b/g/h)

Product Sheet

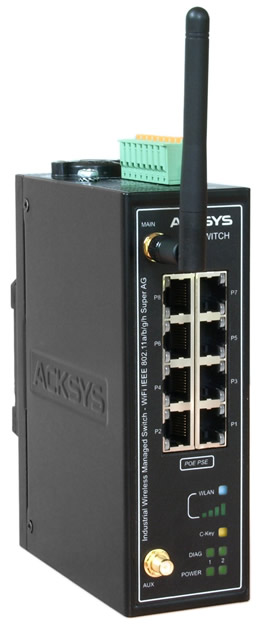

WLg-Switch is a 3-in-1 combo solution: 8-port managed Ethernet switch, 2.4 / 5 GHz WiFi ACCESS POINT / BRIDGE / REPEATER and 120W power injector (POE PSE) designed for harsh industrial environments and automotive applications.

The unit is housed in a compact enclosure ready to be DIN rail or panel mounted.

Both Switch and power injector are manageable that make it possible to offer advanced configuration.

WLg-Switch can be managed using a web browser or SNMP; The “C-Key” allows for quick and easy on-site replacement of the WLg-SWITCH unit, eliminating the need to reconfigure the replacement part or to use any other equipment, giving it a high availability.

WLg-Switch fulfills the most severe requirements in terms of operating environment: operating temperature from -20°C to + 70°C ( -4°F to 158°F ), shockproof and vibration proof according to MIL-STD- 810F standard, IP 30 seal rating.

Top “C-Key” for quick
and easy on-site configuration
Save & Restore(no need for
manual reconfiguration).

The WLg-Switch used in the ACCESS POINT mode makes it possible to create an industrial WiFi wireless network from any industrial equipment featuring an 10/100 Ethernet interface.

Used in the BRIDGE mode, the WLg-Swtich enables to connect any industrial equipment featuring a 10/100 Ethernet interface to the WiFi wireless network.

WLg-Switch module can also be used as a WiFi network repeater (WDS) in order to extend radio coverage, device supports both INFRASTRUCTURE and AD-HOC modes.

The WLg-Switch device is also designed to work as a wireless bridge between the wired MODBUS/TCP or PROFINET protocols and the radio network, this feature allows to connect any MODBUS/TCP or PROFINET equipments to this network.

Thanks to its built-in WEB interface, the setup of the device is achieved using the web browser installed on your computer (Internet Explorer, Netscape, Mozilla ...).
It also offers SNMP and NDM administration / configuration and the “C-Key” which allows quick and easy on-site replacement of the WLg-SWITCH unit, eliminating the need to reconfigure the replacement part or to use any other equipment.
WLg-Switch doesn't require any additional software to be installed on your computer (no peripheral driver needed).

The WLg-Switch is compliant with the IEEE 802.11 a/b/g/h standards (wireless Ethernet 2.4 / 5 GHz), it features a built-in 2-port Ethernet 10/100 base TX auto-sensing switch on RJ45 connectors.

The radio link is made safe by using most modern methods of protection: WEP 64/128 bits, WPA-PSK, WPA2-PSK and authentification IEEE 802.1x (RADIUS server).

The nominal range (open space) of the module is 300 m for a transmit power of +20 dBm and -92 dBm in reception (a/g modes) and -95 dBm (IEEE 802.11b mode).

It is powered from a dual input DC power supply (+9VDC to +72VDC), power consumption is 10W.
WLg-Switch is also compliant with the IEEE 802.3af standard, it can deliver power to up to 8 equipments compliant with that standard, a +48VDC power supply is then required.

Radio characteristics summary

    Features Access Point, Ethernet Bridge, bridge router, WDS repeater functions and
        both AD-HOC and INFRASTRUCTURE modes

    54/108 Mbps wireless Ethernet link compliant to the IEEE 802.11 a/b/g/h & SUPER AG
        standards, OFDM, DSSS, 2.4 / 5 GHz

    Rapid roaming (less than 50 mS in single channel mode)

    Two 2 dBi omnidirectional 2.4 / 5 GHz antennas, RP-SMA type connectors

    300 m nominal range (line of sight), 60 m in other cases (with built-in antenna), up to
        5 Km with a 20 dBi antenna

    Built-in ATHEROS's chip set: AR5414 (AR5006SX)

    +20 dBm transmit power, -92 dBm receive level (a/g modes) and -95 dBm receive
        level (b mode) with transmitter power output control (TPC), 400 mW high power radio
        option also available

    64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS supplicant &
        authenticator), MAC addresses filtering, SSID broadcast control

Switch characteristics summary

    8-port 10/100 Ethernet managed (layer 2) switch auto-negociating, RJ45 connectors

    Standards: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.1p (QoS
        class of service), IEEE 802.3x (Flow Control and Back-pressure), IEEE 802.D
        (Spanning Tree) , IEEE 802.1Q (VLAN support)

    Power supplying for connected Ethernet equipments according to the POE PSE
        standard (IEEE 802.3af), individual port managment / administration (class
        managment, power consumption managment and control), 120W total power

    "plug & play" mode "auto MDI/MDIX cross-over"

    IEEE 802.3x self adaptative (full duplex / half duplex)

    "Port mirroring": monitoring network traffic that forwards a copy of each incoming
        and/or outgoing packet from one port of a network switch to another port where the
        packet can be studied

    802.1Q VLAN support to enhance security/network performance (up to 64)

    802.1p priority Queues (QoS), four traffic classes support, typically supporting
        prioritized packet streams for management, voice, video and data

    Store and forward technology with 3.2 Gbps wire-speed non-blocking fabric

    2048 MAC address entries with automatic learning and aging

    Packet Buffer: Embedded 1 Mbits shared buffer (64 bits organization)

    SNMP and traffic class snooping support

    Extensive RMON statistics counters

Other characteristics summary

    No peripheral driver required, configuration from standard internet web browser (built-
        in web server), SNMP agent, NDM administration software

    “C-Key” which allows quick and easy on-site replacement of the WLg-SWITCH unit,
       eliminating the need to reconfigure the replacement part or to use any other
       equipment

    LEDs signalling for LAN, WLAN network activity, 10/100 mode, MAIN & AUX power
       supply, radio receive level, “C-Key” detection

    Shockproof & vibration proof rugged metal enclosure L:110 x l:50 x h:151 mm
       (4.33 x 1.97 x 5.94 inch), weight: 650g (22.9 oz)

    Dual input DC power supply (+9VDC to +72VDC), 10W typical power consumption,
       removable clamp-cage terminal, +48VDC 120W is required for POE injector operation

    Alarm: Relay output warning: power failure, LAN or WLAN connection failure,
       Watchdog. 1 FORM B solid state relay, 60V 0.15A, contacts on removable clamp cage
       terminal

    Standards: MIL-STD-810F 514.5 & 516.5 methods (shocks & vibrations)
       EN 301489-17 & EN 61000-6-2 (EMC), IP30 seal rating

    Operating temperature: -20°C to +70°C (-4°F to 158°F), storage: -65°C to +100°C
       (-85°F to 212°F), humidity: 5% to 95% (non-condensing)

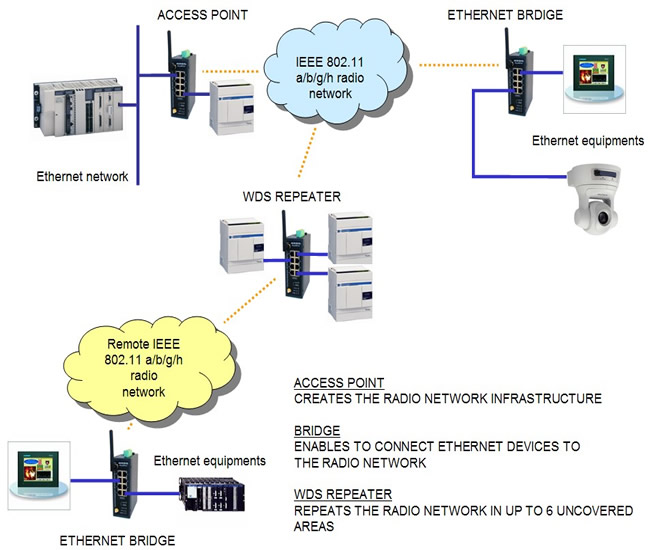

Application Example

The WLg-Switch enables to connect up to 8 Ethernet devices to the wireless network, it also allows to connect two distincts Ethernet network together through the wireless network.

WLg-Switch also supports the MODBUS/TCP & PROFINET protocols, thus you can easily replace a network cable by the radio link to connect any industrial equipment which rely on these protocols.
