SRG3500

Overview

SRG3500 Mobile Gateway

When it comes to advanced mobile radio communications, the SRG3500 is hard to beat. This top-of the line radio comes with built-in gateway and repeater functionality. In gateway mode it forms a bridge between the trunked TETRA network and a number of individual hand-helds, giving improved access to the network in areas of poor reception. In repeater mode it acts as a powerful mobile base station for a number of hand-helds in the field, which are operating separately from the TETRA network.

A range of accessories enables the SRG3500 to be mounted in a car or emergency vehicle, on a motorcycle, in a covert vehicle or marine vehicle.

The SRG3500 can be fitted with a GPS module to enable advanced location-based functionality.

Highlights

• Operates as a fully featured mobile radio when not in gateway or repeater mode
• 10 watts maximum power (subject to network regulations) for maximum range. The SRG3500 is the only true 10W gateway available
• Large black and white display that’s simple and easy to read
• Extends trunked TETRA network coverage even in areas with limited reception
• Gives the largest possible range for direct mode operations
• Common interface with all hand-helds for user familiarity and consistent operation
• Operates with dual, single or no consoles and offers dual data ports and 8 I/O lines for maximum flexibility

Features & Benefits

Easy to use

• Console is equipped with the same familiar interface as handhelds, including large text mode and multi-language support
• Clear 6-line greyscale display with white backlight makes information easy to read; clear visual indications of call status is delivered through tri-colour LED
• Navi knob for quick menu navigation; rapid access to features through a full keypad with 14 programmable soft keys

Powerful

• Offers gateway and repeater functionality in addition to full mobile radio capabilities
• 10W gateway functionality for maximum range
• Extends TETRA coverage in gateway mode, linking direct mode and trunked mode coverage for voice, data, location and emergency communications
• Increases the useful range of direct-mode talk groups in repeater mode

Flexible

• Match operational requirements with the widest choice of simultaneous connections
  • Dual console
  • Dual data ports
  • 8 I/O lines
  • Open standard PEI ports
• Can be mounted in vehicles, covert vehicles, motorcycles, marine vehicles and on desks

Secure

Equipped with voice and data security to increase personal safety, including:

• Dedicated emergency button to summon help, which works with GPS (when fitted) to transmit location information
• End-to-end encryption of voice and data traffic to reduce the risk of interception, protected by tamper-proof processors
• Optional integral SIM connector for Smart Card solution

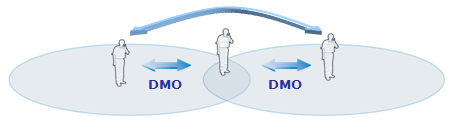

DMO Repeater

Achieve greater range with the DMO Repeater functionality. This feature enables a terminal to ‘repeat’ received voice and data calls giving greater effective range to the participating terminals. Uniquely available on handheld, covert and gateway radios this licensed feature can be enabled whenever necessary using Radio Manager.
