ATEX Alarm




ATEX Zone 0 LED Flashing Beacon

ATEX Zone 0
LED Flashing Beacon

Intrinsically Safe Flashing Alarm Beacon

The ATEX LED Flashing Beacon Alarm is a zone 0 FM, ATEX & IECEx certified flashing beacon which takes 16-28 VDC from a suitable safety barrier The ATEX LED Flashing Beacon Alarm has six high intensity LEDs and a prismatic lens in choice of fiver colors. The ATEX LED Flashing Beacon Alarm has a double lash at once or twice per second. The ATEX LED Flashing Beacon Alarm has an IP65 ABS flame retardant housing and End-of-line resistor certification. The ATEX LED Flashing Beacon Alarm is the economical solution for industrial fire & gas detection systems.

Specifications
Certification: Factory Mutual: Cl I, Div 1, Grp A-D; Class I, Zone 0, AEx ia IIC T4
ATEX & IECEx: II 1G EEx ia IIC T4 (-40°C<=Ta<=+60°C)
Operating Voltage: 16-28VDC via Zener or galvanically isolated safety barrier
Current Draw: 25mA typical when powered from 24VDC via a safety barrier; beacon has internal current limiting and reverse current protection
Light Output: Double flash in two configurable modes: 1Hz / 2Hz
Light Source: Six high intensity LEDs with prismatic lens to optimize LED visibility
Lens Colors: Red, orange/amber, green, blue, clear
Dimensions: 3.35" h x 3.74" dia* / 85 h x 95 dia* mm. *Inc. lens fastener protrusion
Operating Temperature: -40 to +140°F / -40 to +60°C
Environmental: Ingress protection: IP65
Housing material: ABS flame retardant; Lens: polycarbonate.
Relative humidity: 90% max. @ 120°F / 50°C
Cable Entry: 2x M20 knockouts
Other: End-of-line (EOL) resistor certified for fire & gas alarm systems




ATEX Zone 0 LED Flaashing Beacon & Alarm sounder

ATEX Zone 0
LED Flashing Beacon &
Alarm Sounder

ATEX Zone 0 LED Flashing Beacon & Alarm Sounder

The ATEX LED Flashing Beacon and Alarm Sounder is an intrinsically safe FM, ATEX & IECEx certified beacon and alarm sounder. The ATEX LED Flashing Beacon and Alarm Sounder features six high-intensity LEDs and a prismatic lens in choice of five colors.
The ATEX LED Flashing Beacon and Alarm Sounder has a double flash at once or twice per second and a loud 100dB(A) audible output. The ATEX Alarm Sounder has a choice of 49 different alarm tone combinations in three different stages and IP6 ABS flame retardant housing and End-of-line resistor certification.

Specifications
Certification: Factory Mutual: Cl I, Div 1, Grp A-D; Class I, Zone 0, AEx ia IIC T4 ATEX & IECEx: II 1G EEx ia IIC T4 (-40°C<=Ta<=+60°C)
Operating Voltage: 16-28VDC via Zener or galvanically isolated safety barrier
Current Draw: 25mA each typical for beacon and sounder powered separately from 24VDC via safety barriers, 30mA total typical when beacon and sounder are powered from a common barrier; unit has internal current limiting and reverse current protection
Light Source: Six high intensity LEDs with prismatic lens to optimize LED visibility
Light Output: Double flash in two configurable modes: 1Hz / 2Hz
Light Source: Six high intensity LEDs with prismatic lens to optimize LED visibility
Lens Colors: Red, orange/amber, green, blue, clear
Dimensions: 3.35" h x 3.74" dia* / 85 h x 95 dia* mm. *Inc. lens fastener protrusion
Operating Temperature: -40 to +140°F / -40 to +60°C
Environmental: Ingress protection: IP65
Housing material: ABS flame retardant; Lens: polycarbonate.
Relative humidity: 90% max. @ 120°F / 50°C
Cable Entry: 2x M20 knockouts
Other: End-of-line (EOL) resistor certified for fire & gas alarm systems



-Top-

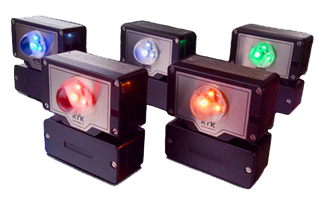

ATEX Zone 0 LED Multiple Alarm Flashing Beacon

ATEX Zone 0 LED
Multiple Alarm
Flashing Beacon

Intrinsically Safe ATEX Alarm Flash Beacon
  • ATEX Certified Ex II 1G, EEx ia IIC T6
  • Super bright LED in five colours
  • Rugged IP65 corrosion resistant casing with separate terminal compartment
  • Can be used in any zone
  • Single, dual or triple flash
  • Dual colour option
  • Pipe or wall mounting
  • Fully isolated control inputs

The ATEX Alarm Flashing Beacon is an intrinsically safe beacon which offers multiple alarm modes to provide a visual warning in a variety of different situations. The ATEX Alarm Flashing Beacon has a choice of five different bright colors including blue and white plus single, dual, triple flash cycles and even a dual color option to warn operators of a relative change in status.
The ATEX Alarm Flashing Beacon has protective lenses that appear clear until the LEDs are illuminated. Each beacon may be connected to a sounder and reset/push button to create a local alarm station. The electronics are totally encapsulated, and wiring connections are made in a separate terminal chamber. All control connections are fully isolated to simplify circuit design.


ATEX Zone 0 LED Stack lights

ATEX Zone 0 LED
Stack Lights

Multi- color signalling led lights

The ATEX LED Stack Lights is an ATEX II 2 G EEx ia IIC T4 certified light tower. The bright LEDs enable this design to be used in hazardous areas with appropriate safety barriers. Up to five lamp segments can be stacked and there are five different colors to choose from. The ATEX Zone 0 LED Stack Lights incorporates a special vibration damper for pole or surface mounting.
The ATEX Zone 0 LED Stack Lights uses reliable LED illumination and has 10+ year continuous life expectancy with a low 20mA current consumption and built in vibration shock absorber. The ATEX Zone 0 LED Stack Lights is compatible with a wide range of barriers and doesn't need an explosion proof housing.Each tier of the ATEX Zone 0 LED Stack Lights has a unique prism cut lens and internal reflective cone to improve visibility.

Features
Tiers Stack up to five tiers high using five different colours or five similar colours in any order.
Colours Each tier available in five super bright colours. Colours are red, amber, green, blue and white.
High Reliability All tiers illuminated with high reliability LED lamps designed to provide a minimum of 100,000 hours service life.
Low Current Consumption All LED lamps operate at 20 mA or less and feature integral current limiting to maintain consistent brightness over the operating range of the voltage supply.
Use in Hazardous Areas In hazardous areas the light tower LED lamps must be powered through suitable intrinsically safe isolators or barriers. Two red or amber LED lamps can be driven from a single IIC interface. The white, blue and green LED lamps require one IIC interface each for consistent brightness.
Mounting A special anti-vibration absorber built into the lower portion of the moulding effectively reduces vibration to the LED lamps. The unit can be pole or direct base mounted.
Configuration It is easy to change the order of the colours. Lenses simply unscrew and LED lamps can be installed in any position.
