ATEX Telephones



Explosion Proof Telephone

Explosion Proof
Telephone

 Explosion Proof Telephone (K 1) (New!)

Analogue telephone matching with most PABX, PBX and PAX system
Robust body vandal resistant
Busy tone detection for auto release the line if line busy
Dry contact for external control automation
Auto answer
Full Soft lock: only dial out from phone book 50 memory address number
Half Soft lock: limit to dial out starting number, eg "00852" area code
High temperature approval
Ring sound 95 db dfd in 1m and 10 ringing tone melodies selectable
Listening by loudspeaker: 70 db in 1m
Phone book memory: 50 address (name & number) programmable
Stainless steel keypad for dial and manuel
Magnetic reed hook-switch
Telephone line powered. No external power or battery required.

 LCD display include

  • Manu setting
  • Welcome text programmable
  • Full soft lock or half soft lock
  • Phone book up to 50 address number selectable
  • Ring speaker up to 4 level selectable
  • Hands free talking sound up to 4 level selectable
  • Handset receiver sound up to 4 level selectable
  • Up to 9 ring tone melodies selectable
  • Back light up to 4 level selectable
  • The dialing number
  • Calling time counting

Specifications

Unit dimension: 227x293x135mm
Unit Weight: 5.8kg
LCD Display: 2 line alphanumerical display ICON or number or letter Up to 4 level backlight selectable
Handset: dynamic receiver with inductive coupling for hearing aids Electret type microphone with noise cancelling Stainless steel armoured handset hold over 170 kg
Waterproof protection: IP66
Impact protection: IK09
Call Flash transfer: max:120ms
Dialling procedure: DTMF
External function: external loud speaker, additional earpiece, ring sounder
Operation temperature: -25°C to 60°C
Storage temperature: -30°C to 70°C
Explosion Proof Telephone

Explosion Proof
Telephone

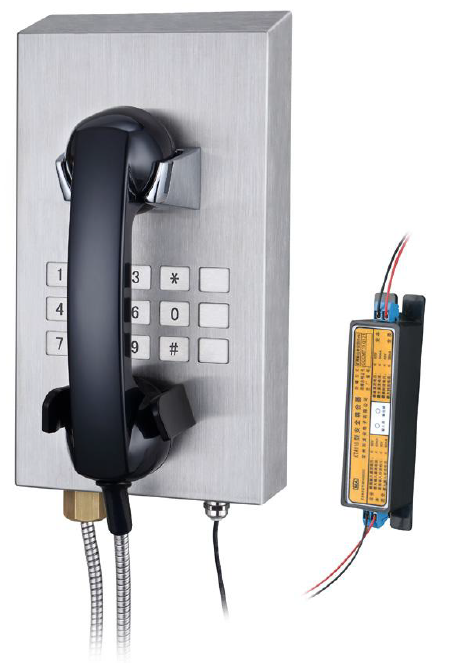

 Explosion Proof Telephone (K 16) (New!)

Housing: metal panels, strong anti-riot
Handle: special ABS plastic, the overall structure, waterproof, dustproof, anti-crack, anti-knocking, tensile
Handle headset, keyboard, buzzer, circuit boards, multi-layer shell with all accessories waterproof, dustproof structure
Phone, good stability, anti-interference ability, in line with the national standard GB /T 15279-2002
Protection IP54
Housing having a grounding device and an internal circuit electrically completely isolated with certain electromagnetic shielding effect
Call clear voice, loud and clear voice, no feedback whistle
Beautiful light machine

Specifications

Ringing Level: 70dB(A)
Frequency deviation: ≤ 1.5%
Low base level:-9 ± 3 dB
Frequency group level: -7 ± 3 dB
Frequency combination of the high-low difference: 2 ± 1 dB
Total harmonic distortion: at least below the fundamental level low 20 dB
Call Transmission index: SLR ≤ 12, RLR ≤ -1, STMR ≥ 10
Output impedance: 600Ω
Electro-acoustic characteristics: sending loudness rating ≥ +2 dB ≤ +12 dB receiving loudness rating ≥ -8 dB ≤ -1 dB sidetone masking rating value ≥ +3dB ≥ +10 dB

ATEX Telephone intrinsically safe Auteldac 4

ATEX Telephone
Intrinsically Safe Auteldac 4

 A Tough, Weather Resistant ATEX Approved Telephone
Ex II 2 G ATEX

The ATEX Telephone Auteldac 4 is an ATEX approved telephone which provides a touh, weather resistant unit built to withstand the extreme environments of industrial atmospheres and environmental extremes. The   ATEX Telephone Auteldac 4 is made from carbon loaded glass filled polyester to eliminate rust and corrosion and has smooth corners and a low profile on the wall.

The ATEX Telephone Auteldac 4 has a handset with a choice of armoured stainles steel or curly cords. The ATEX Telephone Auteldac 4 comes with the option to move around the whole cabin by the use of an extended curly cord up to 5m and handsfree headset.

  • Ex II 2 G ATEX approved telephone
  • CE, IEC Ex and GOST certified
  • Robust and weather resistant up to IP66
  • Headset Option
  • 90dB sounder (adjustable)
  • Robust handset with curly or armoured stainless steel cord
  • Noise cancelling versions available
  • Full keypad with 3 programmable memory buttons, or CB variant
  • Wall or desk mounting, simple installation

ATEX Weatherproof analogue call station

ATEX Weatherproof
Analogue Call Station

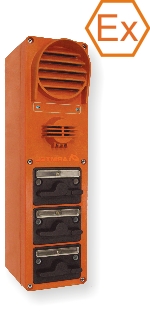

ATEX Weatherproof Analogue Call Station

The explosion proof, weatherproof analogue WFA call stations provide direct intercom connections to other call stations and PA loudspeaker announcements in potentially explosive environments. When the ATEX Call Station robust two way toggle keys are pressed, they activate contactless opto-couplers, which make them suitable for permanent use in aggressive, moist and dusty environments, especially that are enriched with explosive gases and dust.

The ATEX Call Station is dust and watertight and made out of fiberglass reinforced polyester enclosure. The Explosion proof Call Station has two way toggle keys with opto coupler 2 lines each. The ATEX Call Station is active components pressure proof enclosed and has an integrated pressure chamber with loudspeaker and electret microphone. The ATEX Call Station has an innovative connecter for auxiliary amplifiers

The ATEX Call Station has a key controlled line selection function and the line functions are configurable from the control centre. The ATEX Call Station can be switch to low volume for optimal use in nighttime and has a handy LED indication of incoming call and line busy which ever is prioritized.

Equipment Features

  • Dust and watertight
  • Two way toggle keys
  • Active pressure proof components
  • Integrated pressure chamber
  • connector for auxiliary amplifier
  • Key controlled line selection
  • line configurable functions
  • low volume nighttime option
  • led indication

Explosion proof station Ex7711

Explosion Proof Station
EX 7711

 Explosion Proof Station EX 7711

2-wire Explostion proof station with large graphic display and large, clear button field, specially designed for use when wearing protective gloves. The modular housing assures easy maintenance, so that for instance the microphone and keypad can be exchanged without opening the station. Volume electronically adjustable via keypad. Especially for use in explosion capable atmospheres Certified Zone I, Group IIB, T4

Features Explosion Proof Station EX 771

  • Extremely rugged housing (IP 66)
  • Integral amplifier and horn-loudspeaker
  • 8 Row 14 Column Graphic display (EX 7711)
  • LED-Display (EX 7411)
  • Large keypad, especially suited for gloved hands
  • Clearly visible luminous keypad
  • Modular plug-in assemblies for ease of mantenance
  • Hypercardioid noise-cancelling microphone
  • Volume electronically adjustable via keypad
  • Auxiliary items available, e.g. vandal resistant handsets, foot and knee operated push-to-talk switches,
    ear-defender headsets etc.

Measurements: W 190 mm, H 500 mm, D 120 mm
Weight: ca. 10,000 g

Specifications/Certificate Explosion Proof Station EX 7711
Certification: Sira 02 ATEX 1177X; Ignition-protection: II 2 G EEx d [ia]ib IIB T6 Tamb = -20° C to +50° C; IP-rating IP 66; built-in amplifier and horn loudspeaker; Power supply on site 24 V DC, 110, 220, 230 V AC, 50/60 Hz.
-Top-

Hazardous area VoIP telephone ATEX A4

Hazardous Area
VoIP Telephone ATEX A4

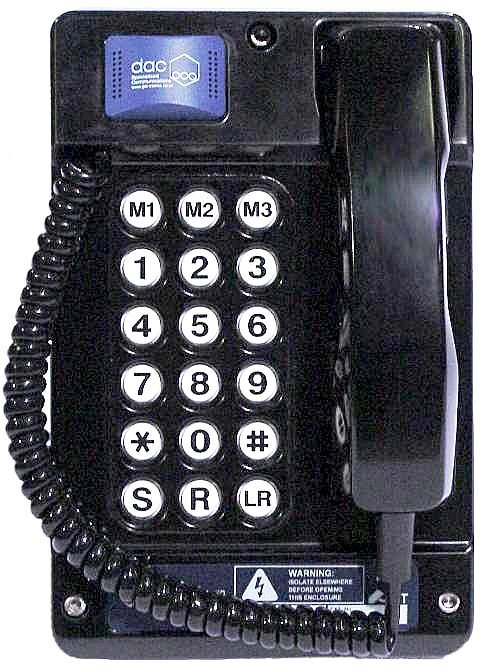

 Hazardous Area VoIP Telephone ATEX A4
The Hazardous Area VoIP Telephone Atex A4  is the world’s first ATEX and IEC Zone 1 approved telephone providing simple network connection without the need for analogue convertors, extending VoIP access to arduous industrial atmospheres and environmental extremes.
With only one voice and data infrastructure to install and maintain, VoIP telephony saves time, money and call costs.
Certified for safe operation in hazardous areas, the VoIP A4 body is made from carbon loaded glass filled polyester.
The elimination of moving parts ensures a high level of reliability in industrial and hazardous environments and enables ingress protection up to IP65.
With smooth corners and a low profile to the wall, the Hazardous Area VoIP Telephone Atex A4is ideal for confined areas with lots of action. The combined wall and desk solution in one unit reduces the number of spares required.
The Hazardous Area VoIP Telephone Atex A4 telephone has a configurable relay output fitted as standard, which may be used for ring strobe activation or local speaker mute.  An inductive coupler is fitted to aid the hard of hearing. For hands-free telephone use, the Auteldac 4 has the option of an ATEX approved headset.
The handset has a choice of armoured stainless steel or curly cords. For greater flexibility to move around the whole area of a drillers cabin, longer handset cord options are available (extending up to 5m curly cord).
Easy configuration: password protected intuitive web pages held within the telephone can be accessed over the network using a browser such as Internet Explorer to view, monitor and change settings within the telephone.
24/7 Availability: telephones with memory buttons have an automatic call divert facility so that if a number or URI is not available then up to 20 alternatives can be dialled automatically.

Applications Hazardous Area VoIP Telephone ATEX A4
Hazardous area telephone with headset option for use in oil and gas and noisy industrial areas e.g. petrochemical plants, oil rigs, industrial facilities, petrol stations and aircraft hangars


Features Hazardous Area VoIP Telephone ATEX A4

  • IEC Ex certified, GOST Approved
    • Fully compliant with TBR21 / TBR38
    • Full keypad with 3 programmable
  • memory buttons, or CB variant
    • Headset Option
    • 90dB sounder (adjustable)
    • Secondary beacon / external sounder actuator
    • Robust and weather resistant up to IP66
    • Industry standard robust handset c/w curly cord or armoured stainless steel
    • Noise cancelling versions available
    • Dual purpose design for wall or desk mounting, simple installation

Approvals Hazardous Area VoIP Telephone Atex A4

EX: II 2 G EEx e m ib IIC T5 (-20°C≤Ta≤50°C)
Baseefa03ATEX0617
-------------------------------------------
Ex e mb ib IIC T5 (-20°C≤Ta≤50°C)
IECEx BAS 05.0060
------------------------------------------
CE: This mark indicates compliance with the following directives: R&TTE Directive 1999/5/EC GOST Approval (Russia) POCC GB.LP06.B00377
(-40°C≤Ta≤50°C)
-------------------------------------------
Fully compliant with TBR21 / TBR38
ATEX Product Directive 94/9/EC, Tested to TBR21 / TBR38

Hazardous location Intercomstation Echo EZ1 ATEX

Hazardous Location
Intercomstation
Echo EZ1 ATEX

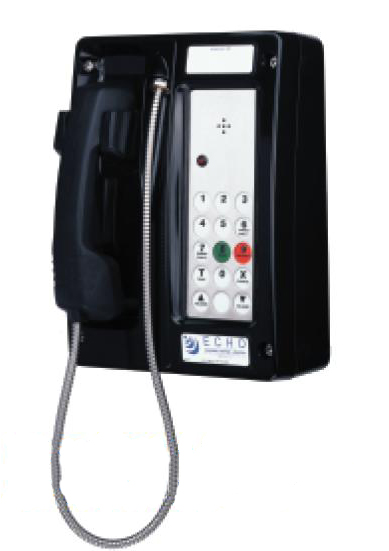

 Hazardous Location Intercomstation Echo EZ1 ATEX

Federal Signal Model EZ1 ECHO Intercom Stations provide safe and efficient two-way voice ommunications in large and small ECHO Digital Intercom Systems. The EZ1 ECHO Station is designed and approved for use in Zone 1 Hazardous Areas, Ex II 2 G EEx meib IIC T6.

The EZ1 ECHO ATEX station provides instantaneous highspeed connections and clear, crisp digital voice quality. Each station offers single-button all call, priority emergency paging, group paging, speed dial, conference call, and relay output.

Any station can call any other station(s) in an ECHO Digital Intercom System. With the headset or gooseneck microphone options, each is capable of hands-free voice communication. Because the ECHO Digital Central Exchange provides 30 channels of simultaneous communication, calls are processed and connected immediately without dial tone or delay.

The EZ1 Station keypad is designed to provide tactile and audible feedback (via external powered loudspeaker) for a positive activation. Each station may be programmed for four levels of privacy for receiving calls; non-private, semiprivate, full privacy and do-not-disturb. Volume for voice and signal levels are easily adjusted on the keypad.

Each EZ1 Station is constructed of heavy duty glass reinforced polyester (GRP), equipped with a weatherproof keypad, and are rated for use in IP66 dust- and water-tight applications.

 Features Hazardous Location Intercomstation Echo EZ1

  • Corrosion and vandal resistant design
  • Private full duplex handset communication
  • Headset, gooseneck microphone and handset options
  • Single touch speed dialing
  • Group call, all-call, priority call, auto conference
  • Simple one pair wiring
  • Output to powered loudspeaker
  • IP66

Specifications Hazardous Location Intercomstation Echo EZ1

Operating Voltage: 24VDC nominal(line driven from ECHO control)
Current Idle: 25mA
Current Connected: 100mA
Handset Microphone Type: Dynamic
Handset Material: Moulded Polyurethane
Handset Cord: Stainless Steel
Stubby Microphone Type: Dynamic
Stubby Microphone Sensitivity: -54dB
Stubby Microphone Enclosure: Stainless Steel
Audio Output: 2.7VRMS / 1.0k ohm load
Volume Control via Keypad: 30dB in ten steps
Line Attenuation: 24dB@160kb/s Max
Loop Resistance: 170 Ohm Max
Distance: 2.0km (1.2 miles) Max
Cable: One twisted pair, non-shielded
Cable Entries(bottom): 3 x M20
Operating Temperature Range: -35C to +50C (T6)
Termination: EEx e screw terminal block
Relay Switching Capacity: 3A at 240VAC
Net Weight: 4.3kg (9.5 lbs)
Shipping Weight: 5.1kg (11.1 lbs)
Shipping Dimensions: 413mm x 241mm x 235mm (16.25” x 9.5” x 9.25”)
Certificate Number: BAS01ATEX2306X
Classification Marking: II 2 G EEx meib IIC T6
Ingress Protection: IP66 (IP65 on handset
