ATEX DECT



Mitel DT 433

Cordless telephone

Mitel Cordless Telephones (DT 42) (New!)

All Mitel phones are equipped with business class features, such as convenient menu interfaces, easy-to-read displays, quick-access volume keys, extensive phone books, calling line identity, and message waiting indication. There are phones optimized to meet the unique needs of every business from a high-tech office to a remote oil refinery.

These robust and extremely durable cordless phones are designed to comply to many specific demands. To operate in tough environments, the phones conform to the Ingress Protection Class 65 (IP 65) rating. To further ensure reliable access to vital information in these environments, anywhere and anytime, the speaker and the earphone are designed for high volumes. For readability, the backlit display can be set to show large characters. These phones are ideal for use in factories, hospitals or hotels where people are constantly on the move.

These robust handsets combine versatile telephony and messaging ensuring reliable access to vital information from building automation systems, production lines as well as communication with other cordless users in the system. Equipped with hands-free operation, using a headset connector and Bluetooth interface, as well as vibration mode for notification, these phones are the optimum choice for demanding conditions.

The DT423 is designed for workplaces where a high level of security is required or where dealing with emergency situations is a part of daily business. Its special features include built-in personal alarm functionality and a man-down/no movement alarm

Technical Data
Dimensions
 142 x 56 x 25mm
Weight
 170g (battery and clip included)
Material
 Case: PC/ABS, Key pad: PC, Clip: PA
Color Gray/Dark Gray
Display (w x h)
 28 x 35 mm CSTN Display
Clip Hinge type standard (or) swivel type
Battery type Li-Ion
Speech time 18 hrs (Bluetooth disabled)
10 hrs (Bluetooth headset in use)
Stand by time 120 hrs(Bluetooth disabled)(Black screensaver activated)
Charging time
 2 hrs (90% charged)
3 hrs (fully charged)
Mult purpose connector For battery-charging, software download, headset connection and configuration
Interface display Multiple colors with high resolution, 128 x 160 pixel LCD LED backlighting
Indicator LED indication for incoming calls/messages and normal visual indication
Vibrating alert Incoming calls/messages
Buttons/keypad 3 soft keys
Off-hook key
On-hook and power on/off
4 way navigation key
Numerical keys
Volume up/down buttons
Sound off key mute button
Ring signal Adjustable in 8 steps
Earpiece Adjustable in 8 steps
Max sound ring signal level 100 dB SPL @ 10 cm
Loudspeaker Duplex loudspeaking function
Operating Temperature -10 °C to +55 °C
Storage Temperature -20 °C to +60 °C
Mitel DT 433

Cordless Telephone

Mitel Cordless Telephones (DT 43) (New!)

All Mitel phones are equipped with business class features such as convenient menu-interfaces, easy-to-read displays, quick-access volume keys, extensive phone books, calling line identity, and message waiting indication. There are phones optimized to meet the unique needs of every business, from a high-tech office to a remote oil-refinery.

These robust and extremely durable cordless phones are designed to comply to many specific demands. To operate in tough environments, the phones conform to the Ingress Protection Class 65 (IP 65) rating. To furthur ensure reliable access to vital information in these environments, anywhere and anytime, the speaker and the earphone are designed for high volumes. For readability, the backlit display can be set to show large characters. These phones are ideal for use in factories, hospitals or hotels, where people are constantly on the move.

These robust handsets combine versatile telephony and messaging ensuring reliable access to vital information from building automation systems, production lines, as well as communication with other cordless users in the system. Equipped with hands-free operation, using a headset connector and bluetooth interface, as well as a vibration mode for notification, these phones are the optimum choice for demanding conditions.

The DT433 is an intrinsically safe handset for use in potentially hazardous environments, supporting integrated personal alarms, man-down/no-movement alarms as in DT 423. The DT 433 complies with the ATEX 94/9/EC directive.

Technical Data
Dimensions
 142 x 56 x 25 mm
Weight
 175 g (battery and clip included)
Material
 Case: PC/ABS, Keypad: PC, Clip: PA
Color Gray/dark gray Front plate: yellow
Display (w x h)
 28 x 35 mm CSTN Display
Clip Hinge Type Standard (or) swivel type
Battery Type Li-Ion
Speech time 18 hrs (Bluetooth disabled)
10 hrs (Bluetooth headset in use)
Stand by time 80 hrs (black screen saver activated)
Charging time
 2 hrs (90% charged)
3 hrs (fully charged)
Multi purpose connector For battery charging, software download, head-set connection and configuration
Interface Display Multiple colors with high resolution, 128 x 160 pixel LCD LED backlighting
Indicator LED indication for incoming calls/messages and normal visual indication
Vibrating alert Incoming calls/messages
Buttons/keypad 3 soft keys
Off-hook key
On-hook and power on/off
4 way navigation key
Numerical keys
Volume up/down buttons
Sound off key mute button
Ring signal Adjustable in 8 steps
Earpiece Adjustable in 8 steps
Max sound ring signal level 90 dB SPL @ 10 cm
loudspeaker Duplex loudspeaking function
Operating Tempature -10 °C to +40 °C
Storage Temperature -20 °C to +60 °C

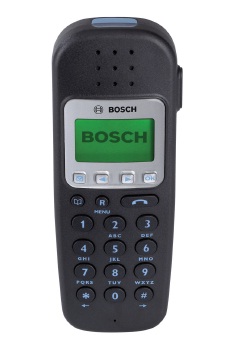

ATEX Bosch DE1-BX DECT Messaging Handset

ATEX Bosch DE1-BX
DECT Messaging Handset

Intrinsically Safe ATEX DECT Handset
The ATEX DECT Handset is a cordless telephone with incorporated message paging function and telephony in one compact and robust DECT Handset. The  ATEX DECT Handset features seamless handover, roaming and encryption. The  ATEX DECT Handset makes internal and external telephone calls possible and is compatible with all analog PABX fatures such as follow me, automatic call back, call transfer and hold calls.

The  ATEX DECT Handset has a redial memory function which stores the last three numbers dialed, and an internal telephone book for up to 200 numbers and names, alphabetically sorted. The  ATEX DECT Handset features Caller Line identification Presentation for calls between  ATEX DECT Handsets and a handsfree function.

 The  ATEX DECT Handset has a stack specifically made for paging messages. Messages can be locked, deleted and forwarded to other  ATEX DECT Handset  or DP6000 pagers/ transceivers. The message stack of the   ATEX DECT Handset has storage positions for up to 20 messages, each message may contain up to 48 text characters and 12 additional characters for date, time and message type. The   ATEX DECT Handset  also has a silent mode which sets the  ATEX DECT Handset  in a do not disturb environment, in this mode the  ATEX DECT Handset will be silent of phone calls and paging messages, the user will only be LED indicator and vibrator

Reception of paging messages
The  ATEX DECT Handset can received the following types of paging messages:

Normal: Paging message with normal priority and bleep pattern.
Urgent: Paging message with high priority. The  ATEX DECT Handset wil bleep until the message is manually acknowledged.
Emergency: Paging message with the highest priority. The  ATEX DECT Handset will bleep until the message is manually acknowledged.
Mailbox: Special paging message for telemetry purposes to monitor processes like temperature constants. Controls and Indicators

  • Menu-driven, easy to program
  • SOS/ Quick-dial button on top of the handset
  • Volume control/ scroll button
  • 14 paging bleep patterns
  • 9 user selectable ringing patterns
  • 7 vibrator patterns
  • Large display, 3 text lines and icons
  • Graphical display with backlighting
  • Low battery Indication
  • Out of range indication
  • Red/ green LED indication

ATEX Wireless Telephone DECT 4070

ATEX Wireless
Telephone DECT 4080

Critical Communication in Explosive Environments

Special requirements exist for potentially explosive working environments with gas, oil, chemical production as well as dust filled environments in wood-processing, ingredients and food industries. The Explosion Proof Wireless Telephone DECT 4080 with ATEX and IEC approval is the perfect solution for critical communication within these environments

The ATEX Wireless Telephone DECT 4080 has a easy to read graphic display and alarm key. The Wireless Telephone has a handy 10 caller ID presentation and internal/ external ring pattern. The ATEX Wireless Telephone DECT 4080 has volume control and LED indication of incoming and unanswered calls. The DECT 4080 comes with an auto login function for roaming between 10 different systems and a telephone book with room for up to 80 numbers

This dect only Works with KIRK (polycom) wireless communication system.
Security and Reliability

The Intrinsically Safe Wireless Telephone DECT 4080 has a special silent mode and auto key lock for extended safety. The Wireless Telephone DECT 4080 comes with 9 different ringer tones and adjustable ringer volume.  The Intrinsically Safe Wireless Telephone DECT 4080 supports 6 different languages UK, DE, FR, IT, ES and NL and the possibility for 1 customer specific language. Unique to the Wireless Telephone DECT 4080 is the SMS function which stores 14 messages of 72 characters each.

Due to its IP 64 classification, the ATEX Wireless Telephone DECT 4080 is resistant to dust and splashing water, making it an ideal communication tool in harsh working environments, indoors as well as outdoors. The Wireless Telephone DECT 4080 is targeted at potentially explosive areas in a working environment.

Intrinsic Safety at a Glance

  • IEC approved: Ex ib IICT3
  • ATEX approved: II2G II3D T60C EEx ib IIC T3
  • Alarm duress button
  • IP 64 industrial rating for dust and water resistance
  • Graphic display
  • Auto login for 10 different systems
  • Weight incl. battery: 130g
  • Size: 148x50x28mm
  • 9 different ringer tones
  • Adjustable ringer volume
  • Microphone mute
  • Headset jack
  • Loud speaking/ Handsfree
  • Vibrator
  • SMS function
