ATEX Enclosures
![](images/atex_zone1.jpg)

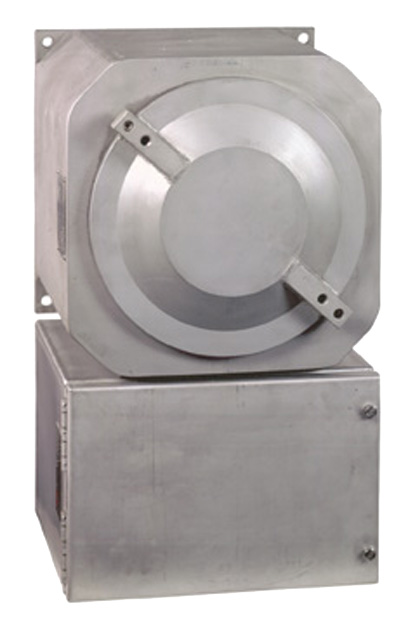

![]() ATEX EEx d IIC / IIB |
Explosion Proof Acid Resistant Enclosure |
The ATEX TNCD Enclosure compromises of many standard sizes of enclosures manufactured in SS316 Acid Resistant Stainless steel, this to give the maximum environmental protection. The Intrinsically Safe TNCD Enclosure allows for standard electrical components inside. Thus subsequent replacement and maintenance of the installed components is easy, and may be performed by trained electricians. If required, several enclosures may be assembled on a framework, with seperate or common EEx e/i connection boxes. The ATEX TNCD Enclosure can be delivered empty with U component certificate or supplied fully assembled according to demands. The ATEX TNCD Enclosure Features
A Flexible ATEX Enclosure Designed to Meet Demands The ATEX TNCD Enclosure can be assembled for motor starters, alarm panels for offshore containers, zenerbarriers, transformers, charging units, PLC, control panels and terminals. The Intrinsically Safe TNCD Enclosure is designed to meet the harsh environments of the north sea and is also ideal for petrochemical and marine applications as well for all kind of industry an explosive atmosphere may be present. If you have a particular need our sales staff will be happy to advise on this. |

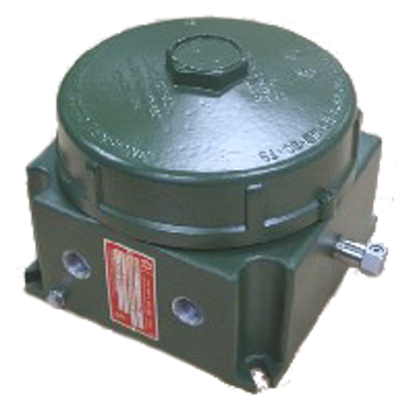

![]() ATEX GUB |
Explosion and Flameproof Top of the Range Enclosure |
The ATEX GUB Flameproof Enclosure is a new series of enclosures for control, check, signal, automation, interruption and/or protection units is Ex d IIC certified. The Intrinsically Safe GUB Flameproof Enclosure is suitable for elecric and/or electronic equipment and terminals for the link to the outside circuits. GUB Flameproof Enclosure may be equipped with an inspection window The ATEX GUB Enclosure is made out of copper free alumnium and has IP66 rating protection. The Enclosure can withstand temperatures reaching from -50C to +55C and comes with EC type examination certificate. |

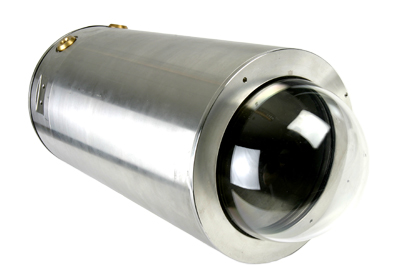

![]() ATEX TNXCD |
ATEX TNXCD Intrinsically Safe Enclosure |
The Technor ATEX Cylindrical Enclosure, easy to install and use, the best available.
The ATEX Cylindrical Enclosure is manufactured in acid resistant stainless steel, SS316, is more cost efficient then traditional EEx d enclosures. The design makes the ATEX Cylindrical Enclosure easy to install and use, and allows for simple solutions within numerous different applications. The ATEX Cylindrical Enclosures can be delivered empty with U- component certificate or supplied fully assembled according to clients demands. The ATEX Cylindrical Enclosure has a flexibel product range with several standard sizes. The Explosion Proof Cylindrical Enclosure has ingress protection to meet harsh environment with IP66 as standard and is suitable for demanding environments. The Intrinsically Safe Cylindrical Enclosure has a high operational reliability and reduced lifetime maintenance costs and is ATEX and GOST approved. Designed to meet harsh environmentsThe Technor TNXCD ATEX Cylindrical Enclosures are designed to meet the harsh environments of the North Sea and are ideal for Petrochemical and Marine applications aswell as for all kind of industry where an explosive atmosphere may be present. The TNXCD ATEX EEx Cylindrical Enclosures allow for utilization of standard electrical components. Subsequent replacement and maintenance of installed components is thus easy. The Intrinsically Safe Cylindrical Enclosures and components are designed, built and delivered in full compliance with current specifications and CENELEC standards. The client receives a complete system including user manual, part list, wiring diagram and an Ex conformity declaration. The ATEX Cylindrical Enclosure has an IP rating of IP66 and IP67/ IP68 upon request. The operating temperature is from -50 Celsius up to +60 Celsius. |
![](images/atex_zone2.jpg)

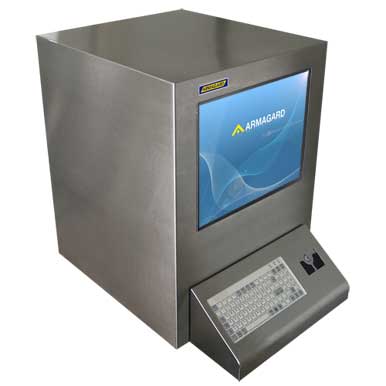

![]() Intrinsically Safe Enclosure |
Intrinsically Safe Enclosure | |||||||||||||||||||
Computer Protection for ATEX Zone 2 Explosive Areas
Description of Intrinsically Safe Enclosure Armagard's Intrinsically safe enclosure offers a low priced alternative to traditional air purged computer systems for use in areas where there is a possibility of explosion. It enables you to use a standard PC and monitor in ATEX zone 2 and zone 22 hazardous areas. Intrinsically Safe Enclosure ideal for: Explosion Risk AreasChemical FacilitiesGas Facilities Factory Floors At a glance (size excluding keyboard): Size (HxWxD)mm: 800 x 600 x 850 Material: Stainless Steel Screen Size: up to 21" Keyboard/mouse: Integrated Mounting: Surface or Stand IP rating: IP65 Product Code: AZ2S21 Fully waterproof and dustproof to IP65, this stainless steel (food grade 316) intrinsically safe enclosure is Ex approved (category 3) in compliance with the European standard for type N restricted breathing devices and the ATEX directive 94/9/EC. Features & Benefits of Intrinsically Safe Enclosure Our Intrinsically safe enclosure is supplied fully assembled with all wiring and earthing fitted as standard and allows a conventional computer and monitor s (up to 21") to be used safely in potentially explosive atmospheres. Our zone 2/ 22 enclosures are used by chemical, gas petroleum and food producers worldwide.
|
