ATEX Phones



ATEX rugged Sonim XP3 handset

ATEX rugged
Sonim XP3 Handset

 ATEX rugged Sonim XP3 handset

Sonim’s new XP3 (X-Com 200) phone takes rugged to an entirely new level, engineered specifically for customers who work and/or play in extreme environments and appreciate the value of dependable tools that perform as promised.
Sonim’s line-up of “Built For Life” tough mobile phones has received excellent reviews in print and online publications around the world. Maxim UK described the XP1 as a phone that “thrives in the most demanding situations”, Playboy subjected the phone to a number of torture tests but was unable to break it. Wired declared that the XP1 is “Shock-proof, water-proof, and generally whack-proof”, Australia’s Herald Sun described the XP1 as “the answer to the prayers of people who work and play outdoors”, and CNET said “The Sonim XP1 eats daily abuse like a piece of cake….”
The XP3 builds on that strong success. The XP3 is waterproof and includes a web brower — it’s the finest phone we’ve ever created — built in response to customer requests for specific features and functionalities.

Will also be available in yellow

ATEX rugged Sonim XP3 (X-Com 200) handset features

Durable casing
- Hardened rubber molding cast via dual injection

Shock and vibration
- Rated to 1.65m drop to concrete
- Protection from 5Hz to 500Hz

Water and humidity
- Rated for stream of water at 90 degree angle

Dirt and dust
- Non-porous casing withstands micro-particles

Temperature range
- Operational range between -20C and +60C

Screen
- Protected by leading scratch resistant coating

Durable mechanics
- Keypad buttons tested to 500,000 pushes
- Dedicated PTT buttons tested to 200,000 pushes


ATEX rugged Sonim XP3 (X-Com 200) handset technical specifications

Core platform

  • Philips Nexperia 6120 platform
  • ARM-9 processor
  • 900, 1800, 1900 Mhz
  • Lithium-ion 1100mA/h battery
  • 5 hour talk time
  • GCF/CE certified
  • Storage for 1000 100-character SMS messages

Physical characteristics

  • Weight 100g/128g without/with battery
  • 7 soft keys /10 programmable short-cuts
  • 2.5mm headset port
  • USB charging port
  • Dedicated volume and PTT keys
  • IP-57 rated

Audio system

  • 95bd+ at 10cm range
  • Omni-directional microphone
  • 98bdb signal-to-noise ratio

Following are the car kits that are verified and compatible with our phone

  • BlueAnt -Supertooth Light
  • Nokia CK-7W
  • Nokia CK 15W - verified only for 4.0.2-218.2
  • Parrot Handsfree Carkit CK 3100

Display

  • 128x160 resolution and 65,000 colors
  • 67x37mm for display bar + 7 rows of data

Language support

 English  Czech  Danish  Dutch
 Finnish  French  German  Greek
 Hungarian  Italian  Norwegian  Polish
 Romanian  Spanish  Swedish  Turkish

Swissphone DE920 The digital PROFI-Pager

Swissphone DE920 -
The digital PROFI-Pager

 Swissphone DE920 - The digital PROFI-Pager.

In addition to the outstanding characterisitics and functions of the DE900 model, the DE920 packs even more features and functions. Just to mention a few: 32 RIC as well as 9 alerts/user profiles and 1 expension profile. Profile selection enables the switching on and off of individual RIC. Antother new feature: a frequency synthetizer using PLL technology. This offers a high degree of flexibility when adjusting the receiver frequency and thereby improves serviceability.

Moreover, the high-contrast 5mm large font display and the easy-to-use 3-button operation with scroll function makes the user-frienddliest devices available.

The newly developed ECO mode is also integrated in the DE920's design. In idle state, the pager is set in a sleep mode and the display is switched off. Of course, the receiver remains active and ready to receive alarm signals. During ECO mode, reception sensivity is enhanced and this usefu feature further increases the contactibility of the user.

The DE920 Ex is approved for use in areas with easily ignitable gas-air mixtures and is thus tailor made for the needsof the chemical an oil industries. The robust, high-convenience pager is designed especially for people who work in such dangerous surroundings and need to be on call at all times. Even in the most sensitive zones, the pager can be used without risk thanks to its passive RF reception characteristic and protection devices.

The most important performance features of the DE920 Ex

  • The most suitable receiver to use in explosionrisk environments.
  • Usage within' easily ignitable gas-air mixtures.
  • Intrinsically safe, even in case of a component failure.
  • 3-Line backlit LC Display with 5mm upper case characters.
  • Approved according to (Ex) II 2G EEx ib IIC T4
-Top-
Impact x

Impact X
Intrinsically safe smart phone

Impact X Intrinsically Safe Smartphone (New!)

The BARTEC PIXAVI Impact X is the toughest smartphone you will ever meet. This intrinsically safe smartphone has all the functionality you will expect from a regular smartphone. The CSA Class 1, Division 1, IECEx and ATEX Zone 1 Certification has not compromised the quality and usability. The device is explosion proof and rated for use in hazardous areas. The Impact X is the next generation wireless video communication technology from BARTEC PIXAVI.

The Impact X intrinsically safe smartphone is a very powerful product, both on the inside and on the outside. It has the latest processors and software. Rugged, watepoof, lightweight aluminum chassis, as well as CSA Class 1, Div.1, IECEx and ATEX Zone 1 certification makes it the most versatile smartphone ever built.

We designed the Impact X Smartphone with hazardous industrial environments in mind, where battery lifetime, ruggedness, usability, sunlight readability, glove compatibility and camera performance is essential. The high end optics, custom buttons, high end imaging sensors and Android operating system ensures that the device can be used for imaging, documentation, inspection and many other tasks.

Applications: Oil and Gas, Petrochemical, Mining and Manufacturing

Features: HD video streaming, High end imaging, light and flexible, Glove Compatible

Benefits: Make better decisions, Increase flexibility, Decrease travel expenses, Improve work routines

Specifications: Double Battery Capacity, ATEX and IECEx, Rugged, IP 68, Android 4.2.2 Jelly Bean

Technical data
Video Quality
 Full HD Video (1080 p, 30 fps)
Storage Capacity
 32 GB
Imaging
 8 megapixel still images
Image Capture
 Dedicated camera proof
Video Codecs H.264/AVC Codec
Impact
 2 joule impact proof
Drop 2 meter drop proof
Submersible IP68 waterproof
Explosion Protection CSA Class 1, Division 1, IECEx and ATEX Zone 1
Housing Made from one piece of aluminium
Connections
 Covered USB Port
Screen 2 mm gorilla glass
Battery 3 Ah battery
Standby 400 h standby
Talk time 8 h talk time
Video Streaming 4 h full operating time
Operating Temperature -20 °C to +45 °C
Storage Temperature -40 °C to +60 °C
Size 150 mm x 65 mm x 12 mm
Weight 290g (10 oz)
ATEX Handy06 Sonim Zone1 Ex Intrinsically safe

ATEX Handy 06 (sonim)
Zone 1 Ex Intrinsically Safe

 ATEX Handy 06 (sonim)
Zone 1 Ex
Intrinsically Safe

This product is End-Of-Life, the Handy 07 is the replacement for the Handy 06

The phone is tough and can withstand extreme environmental conditions but also offers fully functioning vibration alert along with several other useful features including PTT over GSM. It is ATEX certified for use in Zone 1 and 21 and rated IP67 which underlines the ruggedness of the device. It can withstand severe temperature fluctuations to minus 20 degrees.

The Ex-Handy 06 has a 128x168 pixel resolution, anti-glare Gorillaglas display and is also equipped with an loud, audible speaker which helps you to avoid missing calls when working in noisy environments and is perfect for hands-free use. With its rugged design, high quality display and loud ring volume the Ex-Handy 06 is the ideal tool for anyone working in tough conditions where effective communication is paramount.

The Triband 06 phone supports all GSM 900/1800/1900 MHz networks helping you to stay in touch no matter where you are operating. Bluetooth  functionality allows the Ex-Handy 06 to communicate with a wide range of compatible devices including your PC. Synconising the Ex-Handy 06 with your PC could not be easier and only requires you to download the free of charge software available via the ecom instuments website and complete an intuitive installation procedure. Once the software is installed you are then able to transfer data, contacts and schedules easily via Bluetooth® or by using the data cable.

Features Atex Handy 06
  • Motorised vibration alarm
  • Explosion Group IIC
  • IP67
  • GSM 900/1800/1900
  • Bluetooth®
  • GPRS
  • WAP 2.0 and Opera browsers
  • Extremely scratch and impact-resistant display
  • Lotus Notes® and Outlook® synchronisation
  • Free software for data transfer and synchronisation
  • Integrated Office functionality
  • Push-to-Talk Funktion (PTT)
  • Rechargeable 1280 mAh Li-ion battery
  • Java™ MIDP 2.0 - platform
  • II 2G Ex ib IIC T4
  • II 2D Ex ibD 21 T130°C

 The Handy 06 is End-of-Life from April 2012

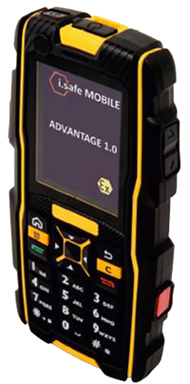

ATEX Industrial Mobile phone Advantage 1.0

ATEX Industrial Mobile Phone
Advantage 1.0

 Robust Industrial mobile phone

The ATEX Mobile Phone Advantage 1.0 is a robust industrial mobile phone with ATEX certification, the ADVANTAGE 1.0 is rugged yet lightweight with 3G/UMTS technology. The Industrial Mobile Phone is perfect for use in extermely tough environments and dangerous conditions. The ATEX Mobile Phone has an easy to hold ergonomic design and long battery life time to offer best in class comfort.

The ATEX i.safe Advantage 1.0 Industrial Mobile Phone has camera and push to talk functionality and featrues bluetooth, GPRS, MMS, SMS and EDGE. The address book can hold up to 2000 records and can be synchronized with Outlook.

Advantages of the ATEX Industrial Mobile Phone:

  1. Robust Industrial mobile phone
  2. Long battery life time
  3. Ergonomic Design
  4. Dust- and water proof (IP68)
  5. Bluetooth, GPRS, MMS, SMS, EDGE
  6. Camera with 2 mega pixel und video function
  7. Push-To-Talk
  8. GSM-Quad-Band / 3G
  9. Address book for 2000 records

2G GSM Frequencies : 850/900/1800/1900
Quad-Band : GPRS class 12, EDGE
3G Frequencies : 900(850)/2100 MHz, HSPA, UMTS, Bluetooth V3.0, V 2.1 +EDR,WiFi, SMS, MMS, GPS, PTT
Size : 125x63x21,5 mm (4,9“x2,5”x0,2“)
Weight : 180 gram with battery
USB : Micro USB
LCD Display : 2.2 QVGA LCD, 240x320 pixel
Picture format : JEPG, BMP
Video format : MP3/AAC/AMR/3GP/3GPP/MP4/AVI/ASF/WMV/WMA
Camera : 2 mega pixel
Coloure : yellow / black
Stand by time : up to 300 hours
Talk time : up to 5,5 hours
Charging time : approx.3,5 hours
Protection level : IP 68
Drop test : 2 meters
Temperature range : -20 to 60 °C
FM Radio : Antenna external via Earphone
Storage capacity : 512M+512M up to 16G Mirco-SD card slot
Java / WAP : Java 2.0 / WAP (V2.0)
Languages : English, German, Spanish, French, and many more
Tools : Calculator, world time, Alarm-clock, stopwatch

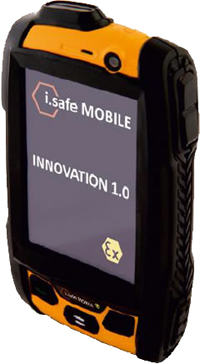

ATEX smartphone Innovation 1.0 Fully Robust

ATEX Smartphone
Innovation 1.0
Fully Robust

 Robust Industrial Smartphone
The ATEX Smartphone Innovation 1.0 is a Zone 1 and IP67 Certified fully robust enterprise Smartphone. The ATEX Smartphone is dust- and waterproof and shock resistant and is designed for use in tough and harsh environments. The extremely lightweight and ergonomic designed Industrial Smartphone provides the user with immediate access to business applications using the Nucleus operating system.

The ATEX Smartphone is equipped with 3G and GPS and features a touchscreen operable with gloves. Various features such as dual SIM card and lone worker protection are included. The ATEX Industrial Phone features GPRS, UMTS, EDGE, HSPA, Bluetooth and Wi-Fi. The Smarpthone Innovation 1.0 has micro sd-card slot up to 16GB and Long battery life time for extra comfort.

  1. Robust Smartphone with 3G and GPS
  2. ouchscreen operable with gloves
  3. Bright display 3,2“, HVGA
  4. Dust- and waterproof (IP67)
  5. Dual SIM card, lone worker protection
  6. Front and rear camera with Flash
  7. GPRS, UMTS, EDGE, HSPA, Bluetooth, Wi-Fi
  8. Micro SD-cards slot up to 16 GB
  9. Long battery life time, exchangeable battery
