ATEX RFID

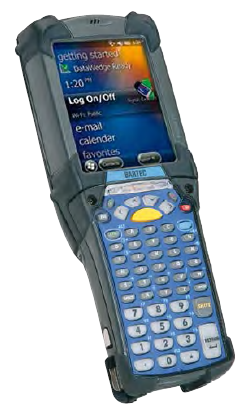

MC92NO

Mobile Computer
for ATEX IECEx

Mobile Computer with 1D-Standard Range Scan Engine or 1D/2D Imager Engine (MC 092) (New!)

The Mobile Computer is a robust device for reliable barcode scanning in hazardous (potentially explosive) areas.

The scan trigger is positioned in such a way that barcodes can be captured very conveniently. The integrated radio module enables real time data access to your host system.

The mobile computer combines the strength of Microsoft's Pocket PC platform with the power of the TI OMAC 4430 dual-core processor with 1 GHz.

A further highlight is the large easy-to-read 3.7" VGA colour display with touchscreen technology. The Mobile Computer is working with the IEEE 802.11a/b/g/n radio standard.

Features

  • International approvals for global usability
  • WLAN radio standard IEEE 802.11 a/b/g/n
  • Easy battery charging in the Ex area
  • Extended storage capacity with replaceable SD card
  • Various versions of replaceable keyboards
  • Based on MC92NO from Motorola
  • Service contracts
Specifications
ATEX Ex Protection Type
II 2G Ex q [ib] IIC T4 Gb
ATEX Certification
PTB 13 ATEX 2019 X
IECEx Ex Protection Type
Ex q [ib] IIC T4 Gb
IECEx Certification
IECEx PTB13.0043X
Keyboard Version
28 keys, numeric
43 keys, numeric with (F) function keys
53 keys, alphanumeric
Display
3.7" VGA colour display with touchscreen 480 x 640 pixels
Dimensions
231 mm x 91 mm x 59 mm
9.1 inch x 3.6 inch x 2.3 inch
Barcode options
SE 965: 1D-Standard Range Scan Engine
Reading range: up to 2.5 m
SE 4500-SR:1D-/2D-Imager Engine
Reading range: up to 60 cm
Weight approx 980 g
approx 31 oz
Ambient temperature
-20 °C up to +40 °C (-4 °F up to +104 °F)
Storage temperature -40 °C up to +70 °C (-40 °F up to +158 °F)
Charging temperature 0 °C up to +40 °C (+32 °F up to +104 °F)
Humidity 5 % to 95 % (non-condensing)
Protection class(EN 60529) IP 54
Processor
TI OMAC 4430 dual-core processor/1 G Hz
Memory 1 GB/2 GB Flash RAM/ROM with the option of expansion with SD card: up to 32 GB
Operating system Windows Embedded Handheld 6.5.3 or Windows CE 7.0
Power supply Li-ion battery 17-A1Z0-0001
with 7.4 V/ 2200 mAh
Battery can be changed in the Ex area!
Backup Battery Ni-MH battery (rechargeable)
3.6 V/15 mAh
Interfaces RS232, USB
Application development EMDK available from MOTOROLA Solutions Homepage
Audio System Integrated Microphone and loudspeaker
Voice Support Voice over IP
ATEX Bartec MC 9090-Ex-K Mobile computer Zone1

ATEX
Mobile Computer Zone 1

International Approved ATEX Mobile RFID Computer (MC 090)

The ATEX Mobile Computer is a robust device for reliably scanning barcodes and reading RFID tags in potentially hazardous areas. The ATEX Mobile RFID Computer is international approved for global usability in all kinds of hazardous industry. The Explosion Proof RFID Computer has a WLAN radio with IEEE 802.11 a/b/g standard and has the option to epand storage capacity with replaceable SD card. The scan trigger of the Intrinsically Safe RFID Computer MC 9090Ex is positioned in such a way that barcodes and RFID tags can be captured very conveniently. The integrated radio module enables time data access to your host system.

Large Dureability and Strengh in One Pocket PC Platform

The Mobile Computer combines the strength of the Microsoft ATEX Pocket PC platform with the power of the intel XScale PXA270 processor with 624 MHz assuring great performance all round. The ATEX Pocket PC has a large easy to read 1/4 VGA color display with touch screen technology and a choice of verious replaceable keyboard variants. Making it a top of the range RFID Computer

Specifications
Mechanical
Protection class IP 54 (EN 60529)
Dimensions 231 mm x 91 mm x 59 mm (9.1 in x 3.6 in x 2.3 in)
Storage temperature -40 °C to +70 °C (-40 °F to 158 °F)
Weight ca. 980 g (ca. 31 oz)
Electrical
Barcode options 1D long range scan engine
Display 3.8", 1/4 VGA colour display
240 x 320 pixel
Operating system Windows Mobile 2005 (english)
CPU XScaleTM PXA270 processor at 624 MHz
Memory 64/128MB
Additional memory (SD card) 512 MB, 1 GB, 2 GB on request
Voltage Replaceable, Li Ion battery pack (2200 mAh/7.4 V)
Only charge in the safe area!
Transmission standard WLAN IEEE 802.11a/b/g
Symbol Spectrum24, IEEE 802.11a/b/g, (Direct-Sequence Topologie)


ATEX mobile computer PDA MC9090 Ex Zone1

ATEX mobile computer PDA
ATEX Mobile Computer Ex zone 1

ATEX mobile computer PDA Ex zone 1 (MC 090)

The atex Mobile Computer is a robust device for reliable scanning barcodes and reading
RFID tags in zone 1 hazardous areas.
The scan trigger is positioned in such a way that RFID and barcode  tags can be captured very
favourable. The integrated radio module enables real time data access to your host system.
The zone 1  atex PDA combines the strength of Microsoft‘s Pocket PC platform with the ultimpower of the Intel® XScaleTM PXA270 processor with 624 MHz.
Also, the  1/4 VGA color display with touchscreen technology making usage easy for everybody.
The mobile computer is working with the IEEE802.11a/b/g.

Features  Atex mobile computer PDA Ex zone 1

  • International approvals and certificates  for global usability
  • RFID/UHF with wide reading rangeWLAN radio standard iEEE 802.11 a/b/g
  • Battery can be changed easily by the user
  • Expanded storage capacity with replaceable SD card
  • Choice of various replaceable keyboard variants
  • Service contracts

Approvals and Certificates MC9090 Ex

Ex protection type
II 2G Ex q [ib] IIC T4
II 2G Ex q [ib] IIB T4 (Imager)
Certification
PTB 05 ATEX 2055

Specifications
Keyboard version
available with 28, 33, 43 and 53 keys
Display
3.8'’, 1/4 VGA colour display with touchscreen
240 x 320 pixels
LF Reader
Nominal read/write range
approx. 5 cm (1.9 inch)
Antenna
integrated in the modul
Frequency range
125/134 KHz
(automatic switched by the reader)
Barcode options
MC 9090ex-K
SE 950: 1D-Standard Range Scan Engine
Reading range: approx. 10 cm up to 120 cm
SE 4400:1D-/2D-Imager Engine
Reading range: approx. 6 cm up to 50 cm
MC 9090ex-G
SE 1524:1D-Long Range Scan Engine
Reading range: approx. 10 cm up to 12 m
Dimensions(length x width x height) MC 9090ex-K: 231 mm x 91 mm x 105 mm (9.1 inch x 3.6 inch x 4.1 inch)
MC 9090ex-G:231 mm x 91 mm x 193 mm (9.1 inch x 3.6 inch x 7.6 inch)
Weight MC 9090ex-K: approx. 1320 g (approx. 46 oz)
MC 9090ex-G: approx. 1400 g (approx. 49 oz)
Ambient temperature
-20 °C up to +40 °C (-4 °F up to +104 °F)
Surface temperature -40 °C up to +70 °C (-40 °F up to +158 °F)
Charging temperature 0 °C up to +40 °C (+32 °F up to +104 °F)
Humidity 5 % to 95 % (non-condensing)
Protection class(EN 60529) IP 54
CPU
Intel® XScaleTM PXA270 prozessor/624 MHz
Memory 128/128 MB RAM/ROM option of expansion
with SD card: 512 MB, 1 GB or 2 GB
Operating system Windows Mobile 2005
Power supply Li-ion battery 17-A1Z0-0001
with 7.4 V/ 2200 mAh
Battery can be changed in the Ex area!
Backup Battery Ni-MH battery (rechargeable)
3.6 V/15 mAh

-Top-

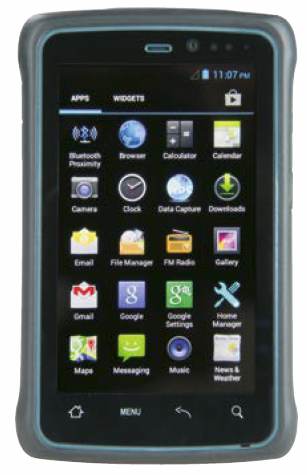

Lumen x4 Industrial Mobile Computer

Lumen x4
Industrial Mobile Computer

Lumen x4 Industrial Mobile Computer (New!)

Lumen X4 from BARTEC is an extremely light, rugged and highly flexible industrial mobile computer for rough environments.

Lumen X4 has a large number of international certifications and can be used throughout the world. It is approved for ATEX and IECEx Zone 2/22 and for CSA Class I Div. 2. Approvals for other countries are possible on customer request.

Thanks to its numerous functions, the Lumen X4 provides perfect support for warehouse management, transport, service technicians, operating personnel, engineers and project managers in the field and in industry.

Features

  • Extremely flexible industrial mobile computer for rough environments
  • Powerful quad core processor for high working speed
  • Replaceable battery with long life
  • Rugged due to military specifications in accordance with MIL-STD-810G
  • Integrated Bluetooth, WLAN, 3.75G and NFC
  • Integrated 8 MP camera
  • Optional barcode scanning with 1D/2D imager
  • Optional scanning of RFID HF Tags
  • Low weight
  • Wide Range of Accessories
Specifications
ATEX Ex Protection Type
II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100 °C Dc

IECEx Ex Protection Type
Ex ic IIC T5 Gc
Ex ic IIIB T100 °C Dc

CSA Ex Protection Type
Class 1 Div 2 Groups A, B, C and D T5
Processor
ARM Cortex A7 Quad Core 1.5 GHz
System Memory
1 GB Mobile DDR2
RAM
4 GB eMMC
Expandable Memory
Micro SD card up to 32 GB supported
Operating System
Android 4.2.1(Jelly Bean)
Size
4.3"
Resolution
480 x 800 pixels
Brightness
400 cd/m2
Touch function
Projective capacitive multi-touch
Camera
8 MP Camera with autofocus and
LED flash on the back
2 MP Camera on the front
Size
132.7 mm x 82.0 mm x 25.7 mm
5.22 inch x 3.23 inch x 1.01 inch
Weight 280 g (0.62 lb) with battery
Rugged design In according with MIL-STD-810G
Shock according to method 516.6 Procedure 1,
Vibration acc. to method 514.6 Procedure 1,
Freefall from 4 feet onto concrete floor acc. to method 516.6
Operating temperature
-30 °C up to +60 °C (-22 °F up to +140 °F)
Storage temperature -20 °C up to +60 °C (-4 °F up to +140 °F)
Air humidity 5% to 95% (non-condensing)
Protection class(EN 60529) IP 64(Non-ex IP 65)
Battery Lithium polymer battery 3.7V/ 3.900 mAh(1S/2P)
Battery life up to 20 hours
Charge time using mains adapter: up to 2.5 hrs
Charge time using USB (PC): up to 6.5 hrs
Replaceable in the safe area
USB mains adapter input: AC 100 to 240 V/50 to 60 Hz/0,3 A
output: DC 5 V/1 A/ 5 W Max
Lumen x7 Industrial Mobile Tablet

Lumen x7
Industrial Mobile Tablet

Lumen x7 Industrial Mobile Tablet (New!)

Lumen X7 from BARTEC is a rugged and highly flexible industrial tablet for rough environments.

Lumen X7 has a large number of international certifications and can be used throughout the world. It is approved for ATEX and IECEx Zone 2/22 and for UL Class I Div. 2. Approvals for other countries are possible on customer request.

Thanks to its numerous functions, the Lumen X7 provides perfect support for warehouse management, transport, service technicians, operating personnel, engineers and project managers in the field and in industry.

Features

  • Extremely flexible industrial mobile tablet for rough environments
  • Powerful quad core processor for high working speed
  • Replaceable with long life
  • Rugged due to military specifications in accordance with MIL-STD-810G
  • Integrated Bluetooth, WLAN and NFC
  • Optional WWAN 3.75G (data transmission only)
  • Optional scanning of RFID HF Tags
  • Low weight
  • Wide Range of Accessories
Specifications
ATEX Ex Protection Type
II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100 °C Dc

ATEX Certification
EPS 15 ATEX 1 037 X
IECEx Ex Protection Type
Ex ic IIC T5 Gc
Ex ic IIIB T100 °C Dc

IECEx Certification
IECEx EPS 15.0053X
UL Ex Protection Type
Class 1 Div. 2 Groups A, B, C and D T6
UL Certification
UL File E321557
Processor
ARM Cortex A7 Quad Core 1.5 GHz
System Memory
1 GB Mobile DDR2
RAM
16 GB eMMC
Expandable Memory
Micro SD card up to 32 GB supported
Operating System
Android 4.2.1(Jelly Bean)
Size
7" WSVGA TFT LCD Display
Resolution
1024 x 600 pixels
Brightness
500 cd/m2 (nits)
Touch function
Projective capacitive multi-touch
Camera
5 MP Camera with autofocus and
LED flash on the back
Size
212.4 mm x 132.8 mm x 19 mm
8.36 inch x 5.23 inch x 0.75 inch
Weight approx 600 g (approx 1.32 lb) with battery
Rugged design In according with MIL-STD-810G
Shock according to method 516.5 Procedure 1,
Vibration according to method 514.5 Procedure 1,
Freefall from 4 feet onto concrete floor according to method 516.5
Operating temperature
-10 °C up to +50 °C (-14 °F up to +122 °F)
Air humidity 5% to 95% (non-condensing)
Protection class(EN 60529) IP 64(Non-ex IP 65)
Battery Lithium polymer battery 3.7V/ 5.300 mAh
Battery life up to 20 hours
Charge time using mains adapter: up to 3.5 hrs
Replaceable in the safe area
USB mains adapter input: AC 100 to 240 V/50 to 60 Hz/0.6 A
output: DC 5 V/3 A/ 15 W Max

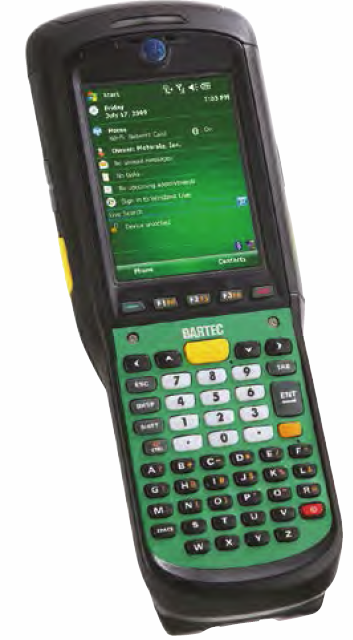

MC959x

Mobile Computer
for ATEX IECEx

Mobile Computer for ATEX/IECEx Zone 2 and 22 (MC 59) (New!)

The mobile computer offers the characteristic features of the robust mobile computer series and numerous new capabilities in addition. These were modified specially by BARTEC for use in ATEX/IECEx Zone 2 and 22 hazardous areas.

The result is a device which sets new standards both in technology and design: it is an innovative product with an unsurpassed selection of functions which take mobile computing innovation to a completely new level.

The mobile computer offers a more robust design, extended options for data capture, more intelligent functions, greater processing power and better ergonomics.

Thanks to the ergonomically mounted scan triggers on the mobile computer, data can be captured easily in one-hand operation

Several technologies are available for data communication with other systems and company divisions. They are wireless WAN (WWAN), Wireless LAN (WLAN), Wireless PAN (WPAN)(Bluetooth), IrDA connection. These modules which are integrated in the device, allow a seamless transmission of voice and data and are easy to integrate into the company's network

Further advantages when using it are its robust construction, easy-to-read 3.7 VGA colour display with touch technology and a high-performance lithium ion battery

In the mobile computer, the Marvell PXA320 processor with 806 MHz ensures fast process execution and the Microsoft Windows mobile 6.5 operating system in conjunction with the Enterprise Mobility Developer Kit (EMDK) from Motorola facilitates an easy development of applications.

256 MB RAM integrated in the device and 1GB flash memory are available for storing user-defined applications and data. For larger applications and volumes of data, BARTEC offers micro SD memory cards

Features

  • Option of WWAN-GSM-HSPDA/CDMA-EVDO
  • GPS
  • WLAN radio standard IEEE 802.11 a/b/g Tri-mode radio standard
  • Comprehensive voice-over IP support
  • Various barcode applications with different scan engines
  • Option of a 3-megapixels camera
  • Easy battery charging
  • Expanded storage capacity due to replaceable Micro SD card
  • Various keypad variants
  • Compatibility with MC95xx from Motorola
Specifications
ATEX Ex Protection Type
II 3G Ex ic IIC T6 Gc
II 3D Ex ic IIIC T90 °C Dc
ATEX Certification
EPS 13 ATEX 1 588 X
IECEx Ex Protection Type
Ex ic IIC T6 Gc
Ex ic IIIC T90 °C Dc
IECEx Certification
IECEx EPS13.0028X
Display
3.7" VGA colour display (TFT) with 640 x 480 pixels
Dimensions
234 mm x 89 mm x 51 mm
9.2 inch x 3.5 inch x 2 inch
Weight 623 g
approx 22 oz
Touchscreen analog-resistive touch screen made of polycarbonate
Display backlighting LED Technology
Keyboard options modular alphanumeric keypad
alpha keypad
numeric keypad (Phone)
numeric keypad (Calculator)
Notifications Programmable LEDs
Audio Notifications
Vibrator Alert
Performance characteristics CPU: Marvel PXA320 at 806 MHz
Operating System: Windows Mobile 6.5 (Classic and Professional)
Memory 256 MB RAM/1 GB Flash with the option of expansion with SD card: up to 32 GB
Ambient temperature
-20 °C up to +50 °C (-4 °F up to +122 °F)
Storage temperature -40 °C up to +70 °C (-40 °F up to +158 °F)
Air Humidity 5 % to 95 % (non-condensing)
Protection class(EN 60529) IP 64
Light Immunity Readability Incandescent lamps: 4,844 lux
Sunlight: 86,111 lux
Fluorescent lamps: 4,844 lux
Battery Capacity Rechargeable lithium ion battery
4800 mAH at 3.7V and state of charge and health indicators
Battery standby time 150 hours
Battery talk time 8 hours (minimum, suspend mode)
MC92NO

Mobile Computer
for ATEX IECEx

Mobile Computer for Class I, II, III Div 2 and ATEX Zone 2/22 (MC 29) (New!)

The Mobile Computer is a robust device for reliable barcode scanning in hazardous (potentially explosive) areas.

The scan trigger is positioned in such a way that barcodes can be captured very conveniently. The integrated radio module enables real time data access to your host system.

The mobile computer combines the strength of Microsoft's Pocket PC platform with the power of the TI OMAC 4430 dual-core processor with 1 GHz.

A further highlight is the large easy-to-read 3.7" VGA colour display with touchscreen technology. The mobile computer is working with the IEEE 802.11a/b/g/n radio standard.

Features

  • International approvals for global usability
  • WLAN radio standard IEEE 802.11 a/b/g/n
  • Extended storage capacity with replaceable SD card
  • Various versions of replaceable keyboards
  • Based on MC92NO from Motorola
  • Service contracts
Specifications
UL Ex Protection Type
Class I Div 2 Group A,B,C,D T6
Class II Div 2 Group F, G
Class III

UL Certification
UL File E321557 Vol.1 Sec.5
ATEX Ex Protection Type
II 3G Ex nA IIC T6 Gc
II 3D Ex tc IIIC T 80 °C Dc
-20 °C ≤ Ta ≤ +50 °C

ATEX Declaration of Conformity
B1-A2A3-7C0001, B1-A2A3-7C0002
Keyboard version
28 keys numeric, 43 keys numeric with (F) function keys, 53 keys alphanumeric
Display
3.7" VGA colour display with touchscreen 480 x 640 pixels
Dimensions
231 mm x 91 mm x 59 mm
9.1 inch x 3.6 inch x 2.3 inch
Barcode options
SE 965: 1D-Standard Range Scan Engine
Reading range: up to 2.5 m
SE 4500-SR:1D-/2D-Imager Engine
Reading range: up to 60 cm
Weight approx 700 g
approx 22 oz
Ambient temperature
-20 °C up to +50 °C (-4 °F up to +122 °F)
Storage temperature -40 °C up to +70 °C (-40 °F up to +158 °F)
Charging temperature 0 °C up to +40 °C (+32 °F up to +104 °F)
Humidity 5 % to 95 % (non-condensing)
Protection class(EN 60529) IP 64
Processor
TI OMAC 4430 dual-core processor/1 G Hz
Memory 1 GB/2 GB Flash RAM/ROM with the option of expansion with SD card: up to 32 GB
Operating system Windows Embedded Handheld 6.5.3 or Windows CE 7.0
Power supply Li-ion battery 17-A2Z0-0006
with 7.4 V/ 2200 mAh
Battery can be changed in the Ex area!
Backup Battery Ni-MH battery (rechargeable)
2.4 V/15 mAh
Interfaces RS232, USB
Application development EMDK available from MOTOROLA Solutions Homepage
Audio System Integrated Microphone and loudspeaker
Voice Support Voice over IP
ATEX 2D Barcode Tag scanner

ATEX 2D Barcode/Tag Scanner

ATEX 2D Barcode/Tag Scanner

TagTrans 2D barcode scanner is a new way of data collection. It has an integrated RFID and Barcode scanner and a
powerful Bluetooth interface. TagTrans Atex barcode scanner connects to Handhelds, PCs, Laptops und even Mobile
Telephones.
TagTrans 2d barcode scanner  is an easy way to make your handheld to a RFID reader (writer), using this feature it saves money.

No need to buy expensive and high integrated PDTs. You get full flexibility in reading
with no extra costs because you could use your standard hand held computers and terminals and
read RFID.

The RFID module supports most common ISO 18000 RFID technologies (such UHF, ISO 15693, ISO
14333 Mifare, LF, ISO animal, etc…

Specifications

  • RFID: MultiTag support for UHF (868, 926 MHz) or HF (13,56 MHz) or LF (125 / 134 kHz) (High-Tech Chips)
  • Barcode scanner: 2D imager for all barcodes and 2D barcodes
  • Bluetooth Class1 up to 100m, Bluetooth 2.0 with ERD
  • Powerful micro processor, flexible protocol converter
  • Housing robust design industrial, glass fibre enforced, rugged modular design
  • IP67, encapsulated housing
  • Sealing rings, shock absorbers, roll away protection
  • Compact powerful battery pack LiIon 4500 mAh
  • FlexiScan Version with flexible antennas
  • Optional ATEX approved intrinsically safe ATEX E EX nL IIC T6
  • LEDs for power and communication, Piezo Beeper
  • ON/OFF motion sensor for low power consumption, no trigger
  • Cable version with USB or RS232 interface
  • Optional wrist strap, pistol grip or magnet holder
  • Cradle with car battery charger
  • Lowest price for best technical features

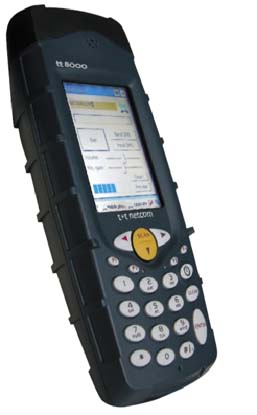

TT8000 ATEX smartphone PDA Zone2 with barcode RFID reader

ATEX Smartphone/
PDA zone 2 with barcode/
RFID Reader

ATEX Smartphone/ PDA zone 2 with barcode/ RFID Reader (TT 08)

The atex pda t+t netcom atex barcode reader handheld series atex pda tt8000 Premium Line provides highest quality mobile equipment. The series complies withthe IP 65 standard and is thus suitable for use under the toughest conditions. The powerful Freescale i.MX21 processor and windows mobile  is an energy-saving barcode reader which guarantees highest processing speeds and above-average durability.

The basic model in the atex pda Premium Line barcode reader pda with windows mobile is equipped with 512 MB ROM storage, two serial interfaces and one USB interface, an MMC and an SD card slot (SDIO Standard), an integrated megapixel camera, the VOIP option (voice over IP) as well as the proven standard features common to all t+t netcom series, such as bevelled-edge keys with safety release, a ribbedsurface housing and a backlit keypad and windows mobile barcode reader pda.

The devices in the atex pda - Communicator - series are equipped with a powerful GSM modem and can be used for GPRS data transmission and as a mobile phone. They have a built-in microphone and speakers. The integrated GPS module (optional) always shows you the right direction. It is not necessary to purchase a new unit if you wish to extend the range of mobile applications; supplementary modules are available. Scanner, imager, RFID reader or chip card reader can all be integrated into the unit or the BackPack.
The integrated aluminium core guarantees maximum stability and breaking resistance
GSM/GPRS modem with Easy-GPRS communication
Telephony / GSM / GPRS / WLAN / scanner/ RFID reader all in one housing
Two serial interfaces, freely programmable, USB and IrDA included in the standard configuration
SD card and CF card slot included in the standard configuration
Modular configuration, subsequent upgrading or extension possible
Long-life rechargeable battery
Customised software with all options in the Windows CE® range, Windows Mobile

GPS navigation
In-car or outside navigation is easy with the atex pda tt8000 series barcode reader whose internal GPS receiver provides navigation without the need for external peripherals. Geo-positions away from the road are easily captured, for example, monitoring industrial plants, tracking containers and vehicles in large car parks. The navigator is also essential for applications in agrarian and forestry areas, which are not recorded on maps. In the car the internal GPS receiver can be used or an external GPS mouse can be connected directly or via the installed cradle. Standard navigation systems such as Map & Guide, Navigon or Tom Tom take care of routing. The tt8000 navigator pinpoints routes and positions.

Specifications

  • Freescale i.MX21 350 MHz
  • 64 MB SDRAM/512 MB NAND Flash
  • Windows CE 5.0 professional
  • 3.5’’ Sharp TFT-LCD with LED backlight, 240 x 320 pixel, 65536 colours
  • GSM/GPRS (option)
  • 1D laser scanner/2D-Imager (option)
  • WLAN (option)
  • 1.3 Mpx Camera (option)
  • Bluetooth (option)
  • GPS (option)
  • RFID reader, 125 KHz/13.56 MHz/UHF legic (option)
  • 4000 mAh Li-Polymer battery
  • 490 gram (without battery)
  • 214 x 90 x 47 mm
  • IP-rating 65
  • Droptest: Multiple drops 1,5 meter concrete, all 6 sides
-Top-
