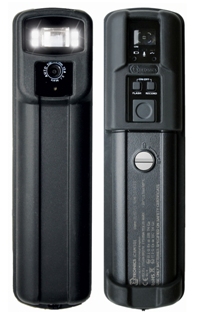

ATEX iCam502
ULTRA Digital Camera

The iCAM502 intrinsically safe digital camera is the perfect visualisation tool for use in hazardous areas. With a high performance auto-focus lens, the iCAM502 can take crytsal clear pictures from as close as 5cm, making it ideal for inspections, images of rating plates, etc. ATEX, IECEx and Class 1 Division certified, the iCAM502 can be used in all sectors of industry, including Chemical & Pharmaceutical plants, Oil and Gas production platforms and refineries.

Manufactured from rugged injection moulded anti static plastic, the iCAM502 is IP65 rated and is suitable for use in most arduous environments. Its long slim lightweight enclosure, weighing less than 200g, lends itself to single handed operation, making it convenient to carry in your pocket. The removable silicon rubber casing further enhances durability, and improves handling particularly when using protective gloves.

Equipped with an auto-focus lens, super bright 4 LED flash, variable flash intensity, advanced anti-shake and image sharpness analysis, the iCAM502 provides high quality images in all Hazardous area environments. Image quality feedback is provided via the camera's three LED lights. The lights flash in sequence to indicate picture quality.

Data transfer to any computer in the safe area is simple and easy to undertake via a USB port utilising Picture Transfer Protocol(PTP) which is initiated automatically. All images are date and time stamped to create a chronological history and are coupled to the unique function of Voice Annotation Audio records, which are systematically matched to the image filename.

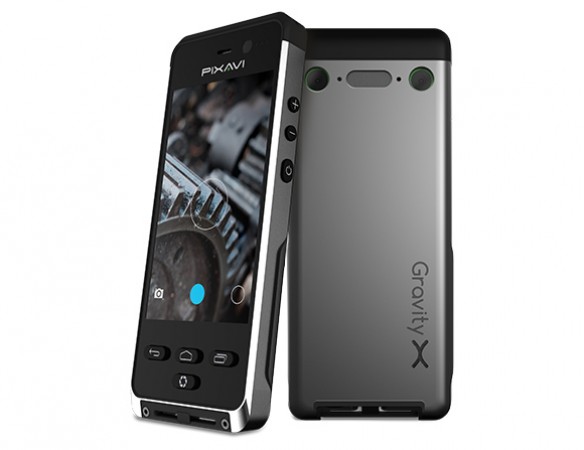

Gravity X
Intrinsically Safe Camera

Full HD 1080 p video and 6 Mpix image capture, high and optics and super fast zoom and auto focus makes the Gravity X a very powerful product. The product enables high quality still image, audio and video capture in hazardous areas and immediately upload and store them to a network or computer. The camera also has a high capacity battery, fast auto focus lens and high resolution image sensors. The camera has an extremely light sensitive image sensor as well as a powerful LED light, enabling it to take great images in dark and confined spaces.The Gravity X intrinsically safe camera replaces the Xcorder EX4000 camera.

Ruggedized and Ex certied products have always been associated with low performance and outdated technology as well as bulky form factors. We wanted to change that!. Our customers came to us and said they wanted the same performance and form factor in their rugged devices as they have in their consumer devices. They also wanted some additional features that no other camera has and we made it happen. For example the wake up time from standby is just 0.5 seconds, and the dedicated camera button allows the user to quickly and easily take images on the spot. The camera is fitted with a rugged strap mount for increased availability and dropped object safety.

The Gravity X intrinsically safe camera is ATEX and IECEx Zone 1 and Zone 2 as well as CSA Class 1, Zone 1 (for US and Canada). The Gravity X also has 8 Mpix HD image sensors, a powerful LED light as well as sunlight readable display, Glove compatibility touch and HD video recording capabilities.

We designed the camera with touch industrial environments in mind, where battery lifetime, ruggedness, sunlight readability and camera performance are essential. To ensure the product achieves professional grade photography, we decided to add the dedicated camera button. The button has a two step procedure where the AE parameters are set before you fire the shot, much like your DSLR camera.

Applications-  Oil and Gas, Petrochemical, Mining, Pharmaceutical

Features- Three HD cameras, Powerful LED light, Glove Compatible, Light & User Friendly.

Benefits- Use in low light/darkness, Easy media transfer to PC, Dedicated Camera button, View media instantly

Specifications- 8 Mpix Full HD image sensors, 4.3" Sunlight Readable Display, Waterproof, IP 68, Wi-fi & Bluetooth

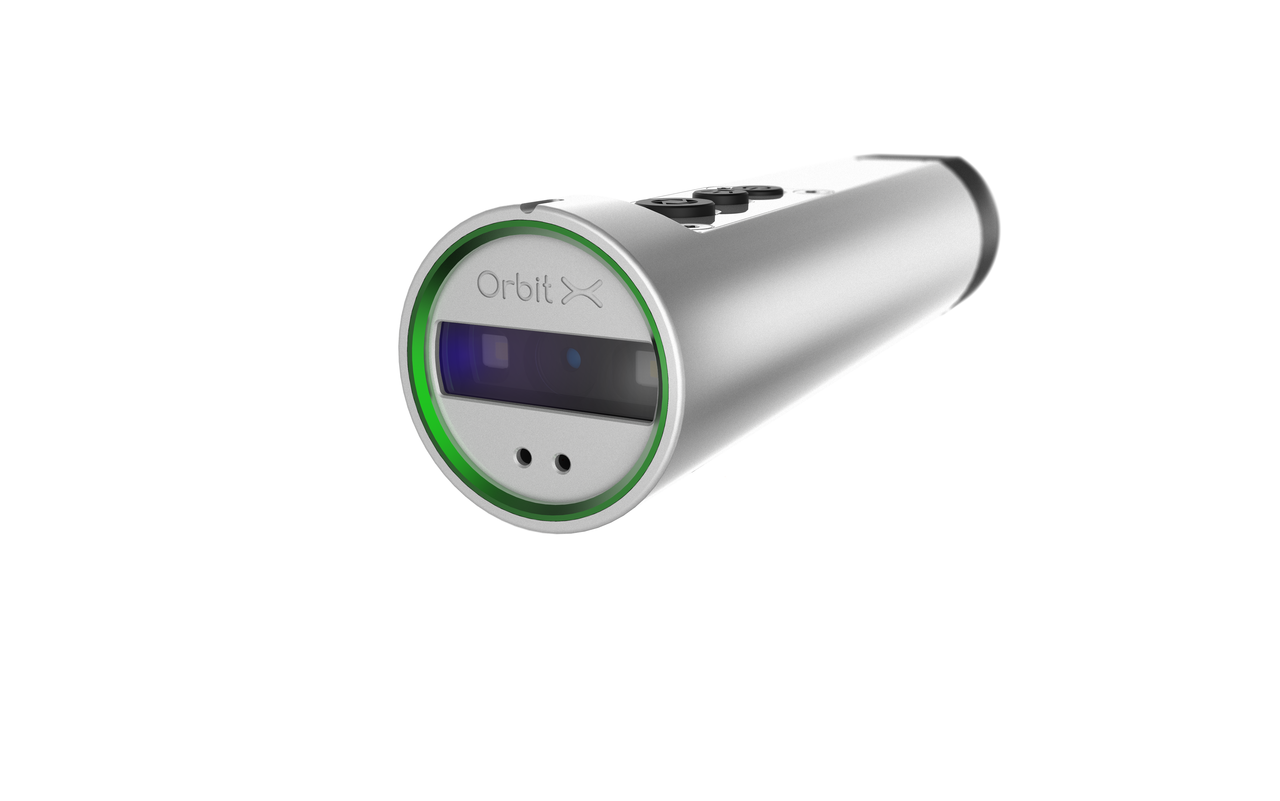

Orbit Explosion
Proof Wifi Camera

The Orbit X is probably the toughest, smartest and smallest IECEx and ATEX Zone 1 explosion proof camera you have ever seen. The camera has a HD imaging sensor, two LED lights and laser pointer fitted into an extremely compact form. This enables you to capture images and video as well as conduct live video conferencing and CCTV type video streaming sessions wirelessly in any hazardous area.

The explosion proof Orbit X Wi-fi camera offers crisp and powerful 1080 p imaging and video that you can be stored locally on a device or streamed in high quality over Wi-fi. It is designed to be used in confined, dark and hard to reach areas. With focus on simple, user friendly operation in a compact, power efficient and rugged design, it is a very versatile product. The Orbit X can be used as a helmet, inspection or surveillance camera. It can be used as a standalone camera as well as in combination with the Intrinsically safe smartphone Impact X or Intrinsically safe camera Gravity X..

The Orbit X is nothing short of technological innovation statement by BARTEC PIXAVI. Imagine that a camera this compact and rugged can record, stream and output 1080p video and 8 megapixel still images wirelessly. You can also record images and video locally, and transfer them to a computer using USB. The Orbit X has 16 to 32 GB of internal memory for several thousand images and hours of HD video. Since the camera is running Android, there are many customization options available. As standard, we are bundling the SIPIDO app, that allows you to do full HD video conferencing wirelessly. The Wi-Fi camera can stream video to any SIP or H.323 video conferencing system. The Orbit X is configureable from the cloud using Collaboration X Mobile Device Management System.

The Orbit X is equipped with two powerful video light LEDs for dark scene illumination. It is designed for use in confined, dark and hard to reach areas. The LED light will not trigger any optical alarms. The integrated laser pointer allows for easy collaboration, when in a real time communication session, can be used for pointing and explanation. The light and laser can be toggled on/off with the touch of a button.

Applications-  Remote diagnostics, Tele buddy mode, Inspection and maintenance, Surveillance

Features- HD video streaming, high end imaging, light and flexible, Powerful LED

Benefits- Make better decisions, Increase flexibility, Decrease travel expenses, Improve work routines

Specifications- 16 - 32GB Memory, IECEx and ATEX, Rugged IP 68, Dual Band Wi-fi

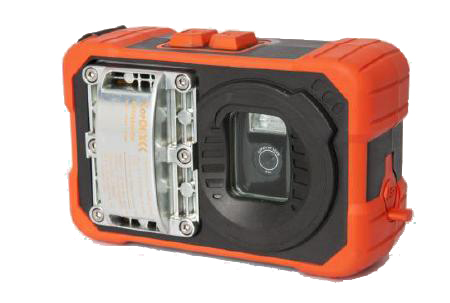

ATEX Digital Camera
Toughpix 2300XP Zone 1

The Toughpix 2300XP is the newest explosion proof digital camera with ATEX certification within a Zone 1 IIC T4 hazardous explosive area. The Toughpix 2300XP explosion proof digital camera is designed to aid professionals within the petrochemical, gas, mining and marine industries to capture still images and short movies in hazardous and explosive area's efficiently and safely. The Toughpix 2300XP atex ditial camera comes with onboard, fully automatic strobe flash and red-eye reduction, the Toughpix 2300XP digital camera can capture still images in extreme, low light situations with the touch of one button.

Toughpix 2300XP explosion proof digital camera has a rugged IP54 design which combines still and moving image capture ability. Intrinsically safe Toughpix 2300XP atex digital camera enables the documentation and processes within hazardous and explosive area's quickly and easily with large, easy access controls allowing operation while wearing protective clothing. The Intrinsically safe Toughpix 2300XP ATEX digital camera can capture images up to an incredible 10 mega pixels and moving pictures in AVI format. Toughpix 2300XP digital camera can view images and movies on the back of the camera on the armoured LCD screen, even in the field. With a massive onboard memory capacity of 4GB, the Intrinsically safe Toughpix 2300 XP explosion proof digital camera can store up to hundreds of images which are easily transferred by high speed USB communication link to a PC upon returning to a safe area.

Safety- The Toughpix 2300XP explosion proof digital camera has a range of certifications across the different models including ATEX, CSA and the South African IS, covering Zone 1 IIC T4, I, M2/Ex d I MB and Class I Div.1 B, C & D hazardous explosive areas. This allows professionals to safely capture images within their hazardous or explosive working environment.

Speed- Intrinsically safe Toughpix 2300 XP ATEX digital camera reduces review time, The Toughpix 2300XP digital camera allows users to view images on site, via the backlit armoured LCD screen on the rear of the camera.

Efficiency- The Toughpix 2300 XP removes time consuming task of acquiring hot work permits every time a digital camera is used on site and allows the job to be done in a single journey. The Toughpix 2300XP explosion proof digital camera also helps the professionals to document any problems that may be found on an inspection and allows visual aid in their reports

Cordex Toughpix
2300XP ATEX Digital Camera

The ATEX CorDex Toughpix 2300 XP Explosion Proof Digital Camera is the newest Zone 1 IIC T4 Hazardous Area approved Digital Camera designed to aid professionals within the petrochemical, gas, mining and marine industries to capture still images and short movies safely and efficiently.The ATEX CorDex Toughpix 2300XP has a fully featured automatic strobe flash and red-eye reduction and can switch to low light situations with the touch of one button

The Cordex Toughpix 2300XP comes with a rugged IP54 design which combines still and moving image capture ability. The Explosion Proof Toughpix 2300XP captures high res images up to an incredible 10 mega pixels and moving pictures in AVI format, the ATEX Digital Camera can process data easily with large access controls allowing operation while wearing protective clothing.The Toughpix 2300XP digital camera can view images and movies on the back of the camera on the armoured LCD screen, even in the field. WIth a massive onboard memory capacity of 4GB, the Intrinsically safe Toughpix 2300 XP explosion proof digital camera can store up to hundreds of images which are easily transferred by high speed USB communication link to a PC upon returning to a safe area.
