SMT based integrated GPS antenna module Lowest assembly cost
17.8 x 16.5 mm² Small footprint
29 mA average tracking (full power mode) Ultra Low power comsumption
-163 dBm tracking Bench marking sensitivity
In-band jamming signal removal up to 9 strongest interferes can be detected and excised





Stack-up Antenna SiRFstarIV Integrated Solution

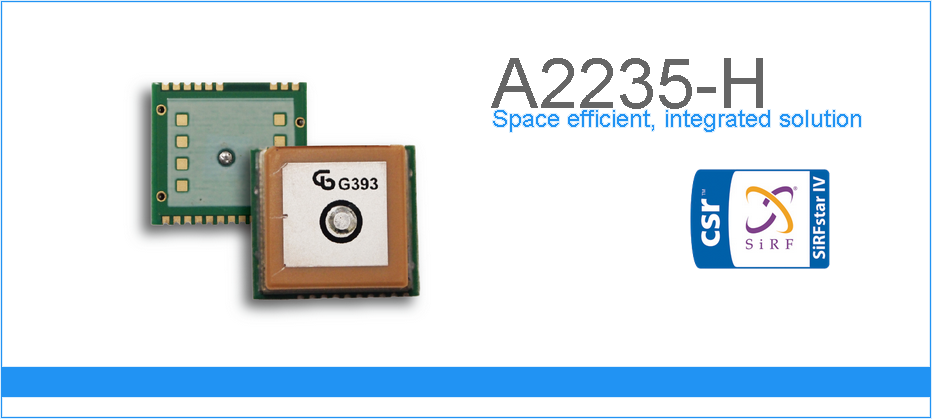

The A2235-H is Maestro’s next generation of active GPS module, integrating a cost effective GPS receiver with an on-board patch antenna judiciously assembled above the components for an optimally small 17.8 x 16.5 mm footprint. This versatile, stand-alone receiver combines the high performance of a SiRFStar IV GPS engine and its extensive features, and a custom high gain patch antenna for best in class sensitivity and position accuracy. Self-contained and easy-to- integrate, the A2235-H results in lower cost of manufacturing and faster times- to-market in a wide range of automotive, consumer and industrial applications. This module was also designed to allow simple migration from A2035-H based designs.

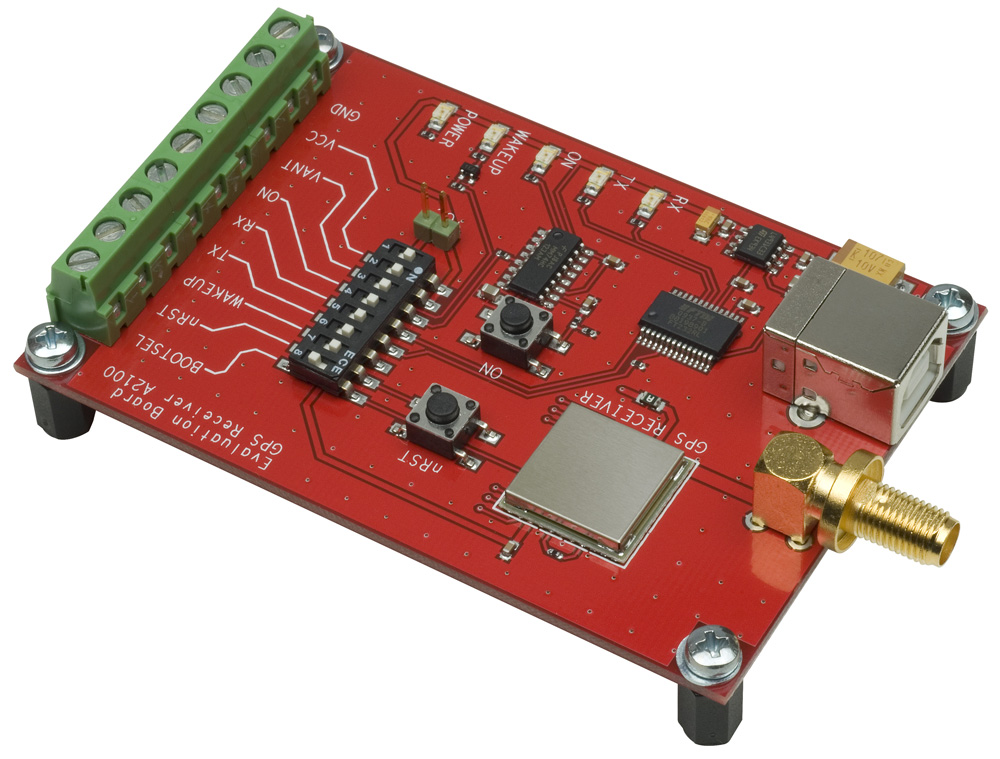

All Maestro Wireless Solutions products come with detailed manuals and easy-to-use evaluation boards. The A2035-H operates in the full temperature range from -40°C to +85°C.



EVA-A2100

Technical Details


PERFORMANCE
Channels 48
Correlators 400,000 plus
Frequency Ll - 1,575MHz
Sensitivity
Tracking - 163 dBm
Navigation - 160 dBm
Acquisition - 148 dBm
Position Accuracy (horizontal) < 2.5m CEP (autonomous)
< 2.0m CEP SBAS
Time To First Fix
Hot Start < 1 s
Warm Start < 32 s
Cold Start < 35 s



COMMUNICATION
UART - NMEA (Default)
NMEA message
Switchable
GGA, RMC, GSA,GSV, VTG,
GLL, ZDA
Baud rate
Swiitable
4,800 (default)
1,200 to 115.2 k
Ports Tx (NMEA output)
Rx (NMEA input)
UART - SiRF Specific SSB/OSP
SiRFbinary Protocol Protocol for SiRFstar
prduct family up to SSIII
Open Socket Protocol Protocol extension for SiRFstarIV
Baud rate
Switchable
57.6 k (default)
1,200 to 115.2 k
Ports Tx (Binary output)
Rx (Binary input)
SPI - NMEA/SiRF Specific
Clock Up to 6.8 MHz
Ports DO (NMEA / Binary output)
DI (NMEA / Binary output)
SPI CLK (clock - input)
SPI CS (chip select - input)
HIGHLIGHTS
SiRFnav™ High availability and coverage; improved TTFF in weak signal environments

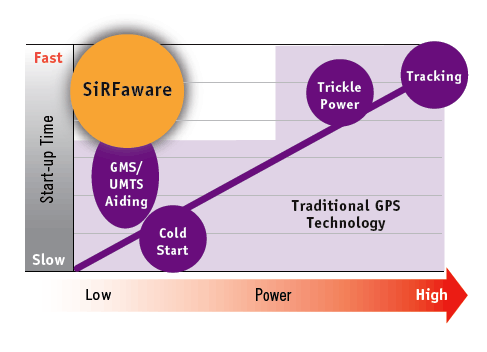

SiRFaware™ Keeps module in a state if readiness for rapid navigation (hot start)
Jammer remover technology Detects and removes up to 8 in-band jammers with minimal loss of sensitivity
A-GPS Embedded Extended Ephemeris (SiRFInstantFix1) and Ephemeris Push support
MEMS 12C interface Prepared to use additional sensor information for improved navigation
Flash-based design Prepared to store configuration and calibration data and to allow firmware updates
Internal antaenna Best matched build-in antenna for easy integration



ENVIRONMENT
Temperature
Operating -40°C to +85°C
Storage -40°C to +85°C
Humidity Non condensing



POWER
Supply voltage 3.0 to 3.6 VDC
Average Current Draw
Full Power Mode (searching) 40 mA
Full Power Mode (tracking) 29 mA
Trickle Power Mode (1Hz) 4.1 mA
PTF Mode 350 µA
MPM/SiRFaware Mode 40 µA
Hibernate Mode 23.5 µA
Antenna supply via Vant
Voltage range up to 5.0 V
Max. allowed current 50 mA



MECHANICAL
Dimensions
L x W x H 17.8 x 16.5 x 7.1 mm
L x W x H 1.2" x 0.65" x 0.2"
Weight 4.0 g / 0.14 oz.
