E205XT04

3G / WAN / LAN / Wi-Fi M2M Router

With high-speed cellular (3G and beyond), WAN, LAN and Wi-Fi connectivity, the E200 is a highly versatile, reliable and rugged router designed for mission-critical enterprise applications requiring faultless connectivity.

The E200 comes in two models; the cost-effective HSDPA ensures always-on connectivity for 2G migration or low-latency applications such as energy and sales & payment, while the HSPA penta-band is ideal for deployment in vertical markets requiring high-speed or global roaming such as security and transportation.

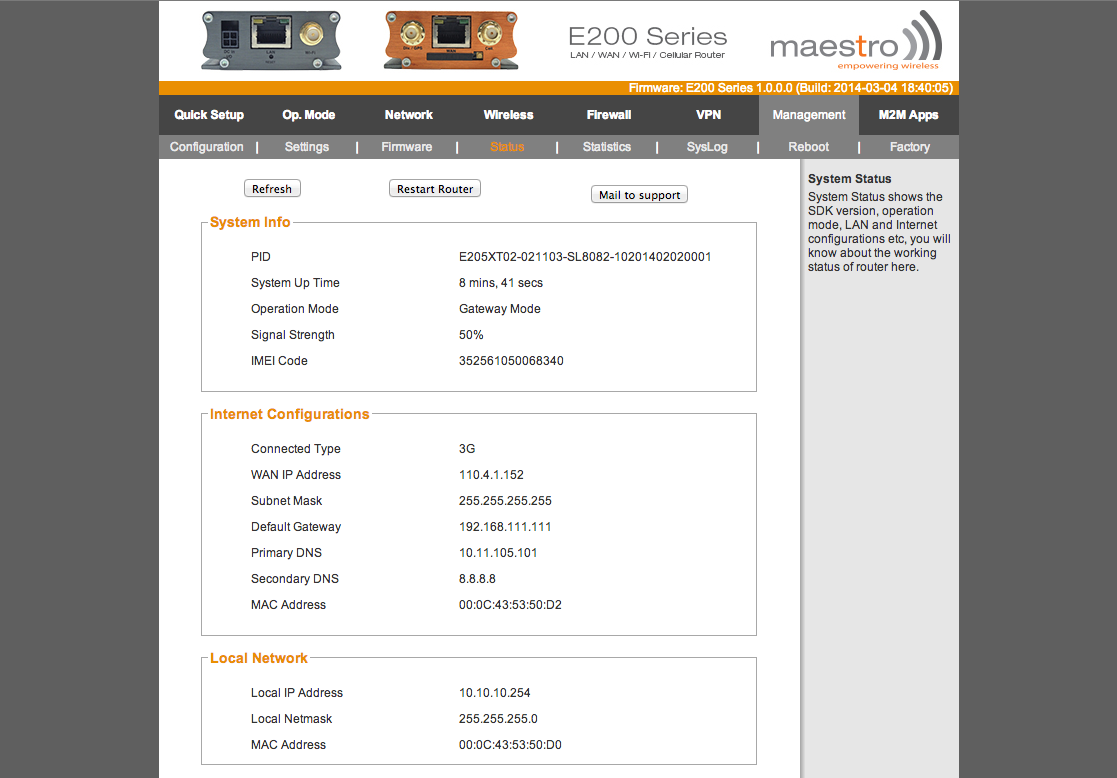

The E200 can be configured through an easy-to-use web interface; a configuration wizard will help the user setting-up the router step-by-step and select their primary and redundancy network; advanced configuration such as VPN, IPsec, OpenVPN and Wi-Fi hotspot setting are also directly available through the web interface. Once configured, a comprehensive set of 6 LED on the top of the aluminum alloy casing will help the user ensuring the device operate as needed. Remote management is also available through an HTTPS connection.

3G / WAN / LAN / Wi-Fi cellular

GPS NMEA outputs

Support PPTP / IpSec / L2TP / OpenVPN

Automatic WAN / cellular failover

Wide 9-60VDC power input

Configuration and firmware upgrade OTA

Management and configuration via GUI

Main Markets

FEATURES E205XT04

INTERFACE

Cellular interface GSM / GPRS / EDGE / HSDPA

GSM / GPRS / EDGE 850 / 900 / 1800 / 1900MHz

CDMA20000 1X -

HSPA
Uplink / Downlink 800 / 850 / 2100MHz
up to 3.6Mbps / 384kbps

EV-DO Rev. A -

SMA antenna connector (50Ω) Cellular x 1 & GPS x 1

LAN on RJ45 connector with Tx / Rx LEDs ✓

WAN on RJ45 connector with Tx / Rx LEDs ✓

Wi-Fi on RP-SMA antenna connector (50Ω) ✓

Micro-Fit™ 4-pin connector 2-pin 9V ~ 60V DC in

Reset button ✓

SOFTWARE

Administration Web-based user interface, quick set-up wizard, console log viewer, save/load configuration
NTP, firewall (MAC/content filtering), QoS, DHCP server, SMS access

Secure remote management Web-based user interface access through HTTPS

Routing Static/Dynamic DNS, DNS proxy, NAT, DMZ, VLAN, WAN as PPPoE

VPN PPTP, IPsec with SSL, GRE, IKE, L2TP, OpenVPN

Wi-Fi Security IEEE 802.11b/g/n 1T1R (mas. 150Mbps throughput) with WDS support
WEP, WPA, WPA-PSK/WPA2-PSK, TKIP, WPA-802.1X/WPA2-802.1X

GENERAL

Material Brushed aluminium alloy, DIN Rail mountable

Dimension without connectors 83.9 x 60 x 25mm / 3.30 x 2.36 x 0.98in

Weight 90g / 3.17oz

Operating temperature range -20°C ~ +60°C / -4°F ~ +140°F

Operating status LEDs x 6 Alert / Power / Cellular signal, network & activity / Wi-Fi

SIM interface (2FF) SIM 1.8V / 3.0V

Embedded SIM (MFF2) available upon request ✓

CERTIFICATIONS AND APPROVALS (PENDING)

Regulatory A-Tick / JATE / TELEC

Carrier (target) Telstra (Australia) / DOCOMO

ORDERING INFORMATIONS

Part number E205XT04

First customer shipment Available
