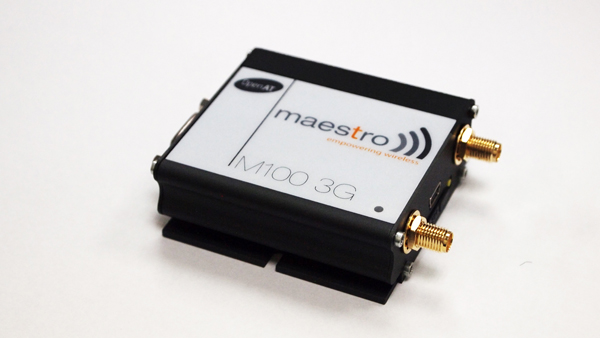

M100 3G

The smallest 3G industrial modem

The M100 3G of the M100 series is the perfect solution for demanding M2M applications. Ultra compact and fully-featured, the M100 3G can be integrated easily into any industrial machine from electricity meters to intrusion alarms or vending machines. M100 3G modems are fully type approved, making them immediately usable worldwide. Boasting the reliability the M100 Series is known for, the M100 3G modems are the perfect devices to use in any of your projects facing tough conditions or extended lifetime requirements.




Main Markets







FEATURES M100 3G M100 3G XT
CELLULAR TECHNOLOGY
GSM / GPRS Quadband / Class 10
W-CDMA / HSDPA Up to 3.6 Mbps downlink
Voice / Data / Fax / SMS
Internet services TCP / UDP / FTP / HTTP / SMTP / POP3 / SNMP / SSL
LOCATION TECHNOLOGY
GPS (NMEA port and command) - Standalone, gpsOneXTRA™, A-GPS
GPS Specifications Standalone A-GPS
Cold start sensitivity (in dBm) / TTFF (in seconds) -145 / < 45 -153 / < 5
Hot start sensitivity (in dBm) / TTFF (in seconds) -153 / < 3 -153 / < 3
Tracking sensitivity (in dBm) -155 -155
Accuracy in open sky (in meters) <3 <2
FUNCTIONAL FEATURES
AT command set > 300
Sierra Wireless Open AT™
Maestro Wireless Solutions Smart Pack II Auto baud-rate detection, auto-TCP/UDP, self-healing protocol, DynDNS, etc.
Download Over The Air
Autorestore - timer reset
VOICE, DATA AND SMS FEATURES
Circuit Switched Data (CSD) service Asynchronous, transparent and non-transparent up to 14,400 bit/s
Automatic fax group 3 (Class 1 and Class 2)
MNP2, V.42bis
Text and PDU SMS
Point to point SMS (MT/MO)
UCS2 Character Set Management
OTHER FEATURE
Operating status LED
Casing Aluminium alloy
DIN rail mountable
INTERFACES
SIM drawer 1.8 / 3.0 V

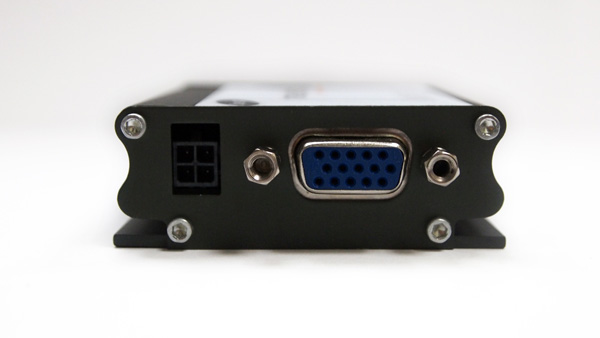

RS-232C on 15-pin sub-D connector
USB 2.0 on mini-B female connector (slave only) -
Micro-Fit™ 4-pin connector Power supply (on 2 pins)
2 x digital input / output (on 2 pins)
SMA antenna connector (50 Ω) Cellular Cellular and GPS (passive and active)
DIMENSIONS
Size without connectors (in mm / inch) 62.8 x 60 x 21.8 / 2.47 x 2.36 x 0.86
Weight (in g / oz) 90 / 3.18
TEMPERATURE RANGE
Operating (in °C / °F) -40 ~ +85 / -40 ~ +185
POWER SUPPLY
Input voltage 5 to 32 V DC

ORDERING INFORMATION M1003G00 M1003G02 M1003G04 M1003GXT00 M1003GXT02 M1003GXT04
Frequency bands (MHz) 850/1900 900/2100 800/850/2100 850/1900 900/2100 800/850/2100
REGULATORY
FCC /PTCRB
CE / R&TTE
A-Tick

CARRIER (on going)
AT&T / Roger
Telstra
Optus (Australia)
NTT DoCoMo



M100 3G SmartPack: embedded intelligence, empowered user experience

Download Maestro Configuration Software for Smart Pack

SmartPack simplify user experience by providing an easy to use interface for setting-up your modem. Fully integrated with all the M100 series, it will let you choose your preferred configuration for a quick integration into your application.

MCS

Features include on v2.0:
  • Remote status check and monitoring
  • I/O monitoring
  • Dynamic DNS services
  • Ping
  • GPRS and IP configuration
  • Call screening
  • Remote AT command by SMS
