M100 2G
|
|
Easy to use, reliable, compact, industrial modems
The M100 2G, of the M100 series is the perfect solution for demanding M2M applications. Ever smaller and fully-featured, the M100 2G can be integrated easily into any industrial machine from electricity meters to intrusion alarms or vending machines. M100 2G modems are quadband, making them immediately usable worldwide. Boasting the reliability the M100 Series is known for, the M100 2G modems are the perfect devices to use in any of your projects facing tough conditions or extended lifetime requirements.
|
|
|
|
| |
|
Main Markets

|
| |
|
|
| |
|
| FEATURES |
M100 2G Lite |
M100 2G |
| TECHNOLOGY |
| GSM / GPRS |
Quadband |
| Voice / Data / Fax / SMS |
data / SMS |
voice / fax / data / SMS |
| Internet services |
TCP / UDP / FTP / HTTP / SMTP / POP3 / SNMP / SSL |
| FUNCTIONAL FEATURE |
| Download Over The Air |
✓ |
| AT command set (GSM 07.05, GSM 07.07) |
> 300 |
| Sierra Wireless Open AT™ |
✓ |
| Maestro Wireless Solutions Smart Pack II |
Auto baud-rate detection, auto-TCP/UDP, self-healing protocol, DynDNS |
| Autorestore - time reset |
- |
✓ |
| VOICE, DATA AND SMS FEATURES |
| Circuit Switched Data (CSD) service |
asynchronous, transparent and non-transparent up to 14,400 bit/s |
| Automatic fax group 3 (Class 1 and Class 2) |
- |
✓ |
| MNP2, V.42bits |
- |
✓ |
| Text and PDU SMS |
✓ |
| Point to point SMS (MT/MO) |
✓ |
| UCS2 Character Set Management |
✓ |
| OTHER FEATURE |
| Operating status LED |
✓ |
| Casting |
Aluminum alloy |
| DIN rail mountable |
✓ |
| INTERFACES |
| SIM drawer |
1.8 / 3.0 V |
| RS-232C on 15-pin sub-D connector |
✓ |
| Micro-FIT™ 4-pin connector |
power supply (on 2 pins) |
| - |
1 x digital input / output (on 1 pin) |
| - |
1 x analogue input / output (on 1 pin) |
| SMA antenna connector (50 Ω) |
✓ |
| DIMENSIONS |
| Size without connectors (in mm / inch) |
62.8 x 60 x 21.8 / 2.27 x 2.36 x 0.86 |
| Weight (in g / oz) |
90 / 3.18 |
| TEMPERATURE RANGE |
| Operating (in °C / °F) |
-40 ~ +85 / -40 ~ +158 |
-40 ~ +85 / -40 ~ +185 |
| POWER SUPPLY |
| Input voltage |
5 to 32 V DC |
| POWER CONSUMPTION |
| GSM 850/900 (PCL 5) |
228mA at 5 V |
| GPRS class 10 (transfer mode) |
403mA at 5 V |
| EGPRS class 10 (transfer mode) |
520mA at 5 V |
| CERTIFICATIONS/COMPLINACES |
| CE / R&TTE |
✓ |
| ROHS Compliance |
✓ |
| ORDERING INFORMATIONS |
M1002GLITE |
M1002G |
| Antenna |
ACC-A01 |
| Serial cable |
ACC-CA01 |
| Power Supply |
ACD-PS01 |
| DIN Clip |
ACC-DIN |
|

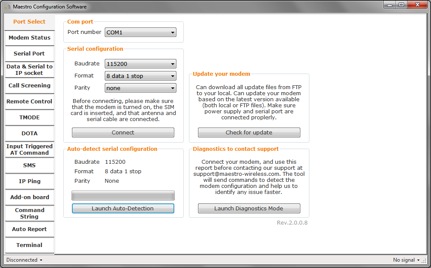

M100 2G SmartPack: embedded intelligence, empowered user experience
Download Maestro Configuration Software for Smart Pack
SmartPack simplify user experience by providing an easy to use interface for setting-up your modem. Fully integrated with all the M100 series, it will let you choose your preferred configuration for a quick integration into your application.
Features include on v2.0:
- Remote status check and monitoring
- I/O monitoring
- Dynamic DNS services
- Ping
- GPRS and IP configuration
- Call screening
- Remote AT command by SMS
|
| |
|
